Notes on direct connection with the CPU port of A/Q series CPU

Take appropriate measures to eliminate any noise from entering the communication cable between

the ZM-

and MITSUBISHI A/QnA series CPU.

Noise should be considered when wiring in an electric box or in a machine. Be sure to keep the ZM-

wiring sufficiently away from power cables.

The longer the communication cable is, the more likely noise is to be an influence; therefore, the

cable length should be minimized as much as possible.

File register(R) cannot be used in case of ROM operation of A series CPU.

A noise filter(ferrite core) is sold as an optional accessory.

In consideration of such noise problems, it is recommended that the standard

type link module be used.

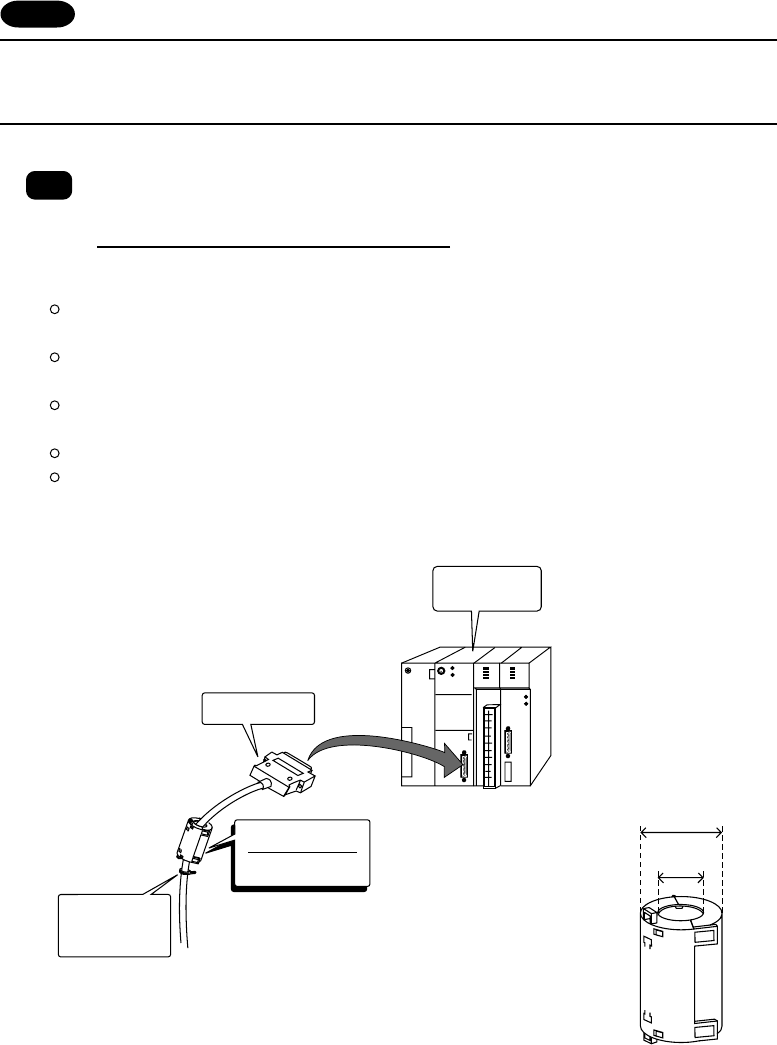

Connect to a CPU port.

To secure the noise

filter, attach the cord

band close to its bottom.

・・・



・・・



・・・



・・・



run

ｓｔｏｐ

A series CPU

Attach this noise filter

as close to the connector

as possible.

QnA series CPU



According to our noise tests, the attachment of a ferrite core improves noise voltage

by 650 to 900V and aids in preventing communication errors. For safer operation,

be sure to attach the ferrite core to the cable.

OD 20mm

ID 8mm

Ferrite core

Note

2 MITSUBISHI PC • 2
