Function Switch (F5)
Ignored.
The following actions are added to the regular functions of these items :
Even if the time does not reach the setting time, the backlight will turn off if the
[F5] switch is pressed (provided that bit 11(Backlight) of Read Area n+1 is OFF
level). (Refer Instruction Manual)
If you select [Manual], the backlight will turn ON or OFF only when this switch is
pressed. Also, you can specify the item, [Backlight Power ON Time Control].
When you turn the power supply of ZM-
**
on ...
[ON] : the backlight is lit.
[OFF] : the backlight is off.
Backlight
ON
Auto 1
Auto 2
Manual

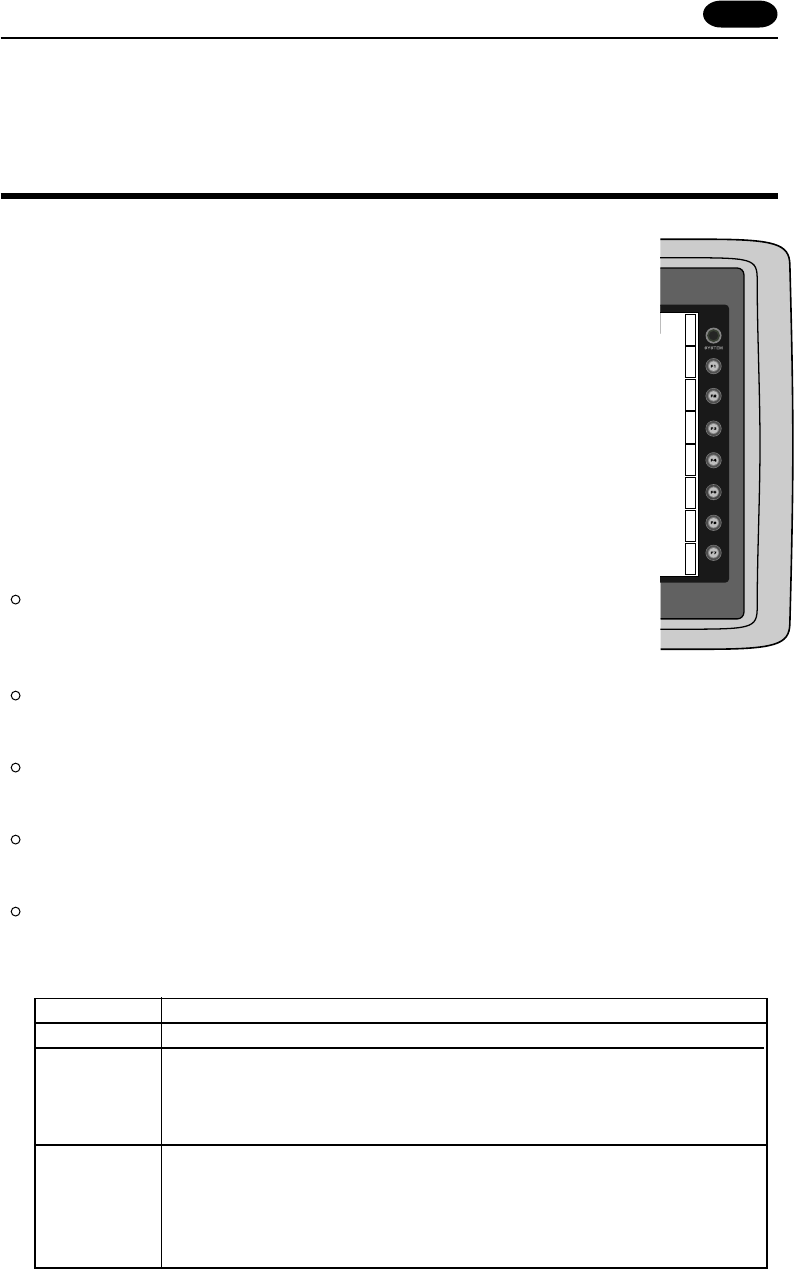

Function Switches
17
Type
[SYS], [F1], [F2], [F3], [F4], [F5], [F6], [F7]
(ZM-42/43 : [SYS], [F1] to [F5])
The [SYS] switch
By pressing this switch, the functions of the switches [F1] to [F7] are defined.
The type of the [SYS] switch is alternate. When this switch is pressed once, the switch
menu is displayed by the side of the function switches [F1] to [F5], and each function
switch corresponds to an item on the displayed switch menu.
When the [SYS] switch is pressed again, the switch menu which is displayed on the
screen will disappear, and the functions of switches [F1] to [F7] are defined for the
purpose of the user. The data of these function switches is allocated to the memory area
of PC.
Function of [F1] to [F5] when the switch menu is displayed
[F1] : Mode
This switch changes the operation mode.
Main Menu Mode --> RUN Mode
Run Mode --> Main Menu Mode (possible to specify the changing time)
[F2] : Contrast Adjustment (dark) ------- invalid in case of the TFT color type
This switch adjusts the contrast of LCD. When the [F2] switch is pressed once, the LCD color becomes
dark. If this switch is held down for 1 second, the LCD color changes rapidly into darkness.
[F3] : Contrast Adjustment (intermediate) ------- invalid in case of the TFT color type
This switch also adjusts the contrast of LCD. When the [F3] switch is pressed once, the LCD color
becomes intermediate.
[F4] : Contrast Adjustment (light) ------- invalid in case of the TFT color type
This switch adjusts the contrast of LCD. When the [F4] switch is pressed once, the LCD color becomes
light. If this switch is held down for 1 second, the LCD color changes rapidly into lightness.
[F5] : Backlight
This switch turns the backlight of ZM-
**
ON or OFF.
If you want to use this function, you have to set [Backlight] of the [Others] dialog in [System Setting].
The following list shows the backlight function specified in the editing software.
Ｓ
Ｙ
Ｓ
Ｒ
Ｅ
Ｍ
Ｍ
Ｏ
Ｄ
Ｅ
Ｂ
Ａ
Ｃ
Ｋ
Ｌ
Ｔ
