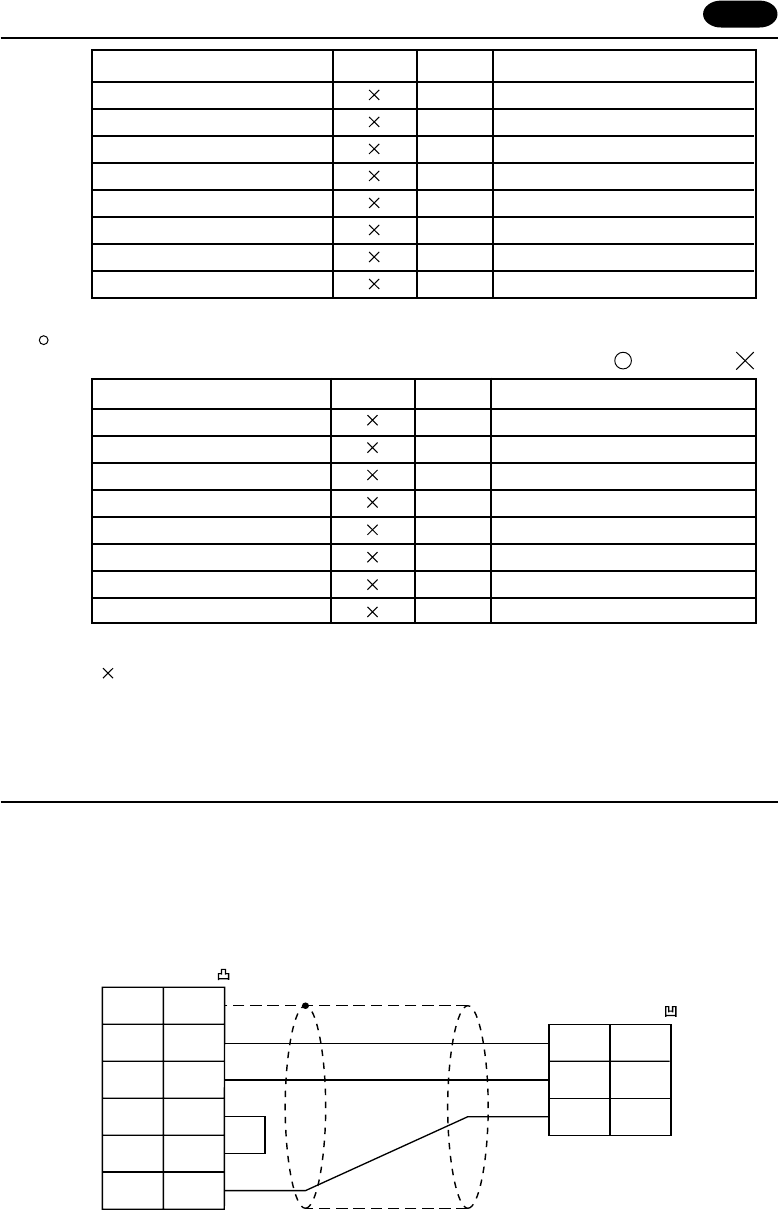

Wiring
RS-232C
Memory Bit Write TYPE Remarks
0E 0
06 1
18 2
19 3
1A 4
1B 5
1C 6
1D 7
The following is a diagram to show the wiring of the cable which connects ZM-** to PC.
HIDIC ABS
2 HITACHI PC • 2
Set the memory to the extent of the memory range of each PC model. In case of using the
[Bit Write] memory as the bit device of the [Output Action] is [Momentary W], the other
bits will be cleared when the bit memory is output, because the [Bit Write] will be output
by one word (refer to P5-10, reference 14-7 of ZM-71SE Instruction Manual). Use [TYPE]
number to assign indirect memory for macro programs.
Available: Unavailable:
Memory Bit Write TYPE Remarks
CS (up/down counter set value) 13
CC (up/down counter elapsed value) 14
DW (data register) 15
E (internal relay) 16 EW as word device
S (global link) 17 SW as word device
J (keep relay) 18 JW as word device
Q (on-delay timer contact) 19 QW as word device
M (one shot timer contact) 20 MW as word device
D-sub 9pin(Female: )
ZM-** (CN1)
D-sub 25pin(Male: )
FG
SD
RD
RS
CS
RD
PC
SD
2
3
SG
2
1
3
4
5
7
5SG
Wiring Diagram 1
* Use twist shielded cables.
- ZM-42/43/52/72/82 1
- ZM-42/43/52/72/82ZM 2
- Expression in this manual 2
- Series name 2
- Safety precautions 3
- 4) Maintenance 4
- Prohibit 4
- Contents 5
