1 Cable for transporting the panel (ZM-80C)
Cable for transporting the panel (ZM-80C)
2 1
ZM-80C is the cable that transports panel data between ZM-42/43/52/72/82 series as well as ZM-41/70 series
and the personal computers.
When using, you need to have a Windows screen edit software ZM-71SE.
The convertible adapter ADP25-9 and ADP25-M are attached to ZM-80C.
Examples of the using cable and convertible adapter.
Types of
Computer
Serial Connector
Type
ZM-42/43/52/72/82 Series ZM-41/70
Control Terminal
DOS/V
PC98
PC98
D-sub 9pin
D-sub 9pin
D-sub 25pin
Use the drawing (1)
Use the drawing (1)
Use the drawing (1) and (2)
Use the drawing (1) and (3)
Use the drawing (1) and (3)
Use the drawing (1), (2) and (3)
(Reference) When constructing by using drawing (1) , (2) and (3), the functions are the same as our
product ZM-60C.

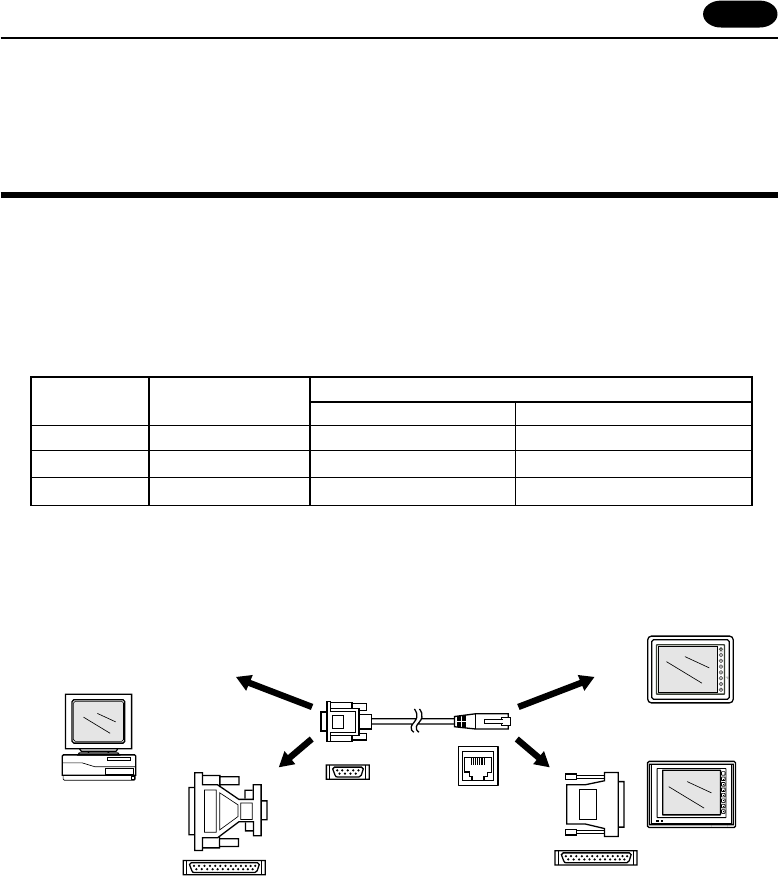

System Composition
(3)
ADP25-M
(2)
ADP25-9
D-sub 25pin
D-sub 25pin
D-sub 9pin
ZM-41/70 Series
ZM-42/43/52/72/82 Series
PC 98 Series
(D-sub 25 pin)
PC 98 Series
(D-sub 9 pin)
or
DOS/V personal computer
(1)
ZM-80C
Modular
8pin
POWER
RUN
SYSTEM
F 2
F 3
F 1
F 4
F 5
F 6
F 7
• The length of the ZM-80C cable is three meters.
