Sharp JW-50FL Uživatelský manuál Strana 174
- Strana / 201
- Tabulka s obsahem
- KNIHY
Hodnocené. / 5. Na základě hodnocení zákazníků
2 - 98
Wiring
RS-232C
ZM-
**
(CN1)
D-sub 25pin(Male: )
FG
SD
RD
RS
CS
DCD
PC
D-sub 9pin(Female: )
RXD
TXD
1
2
3
SG
2
1
3
4
5
7
DTR 4
SG 5
DSR
RTS
CTS
6
7
8

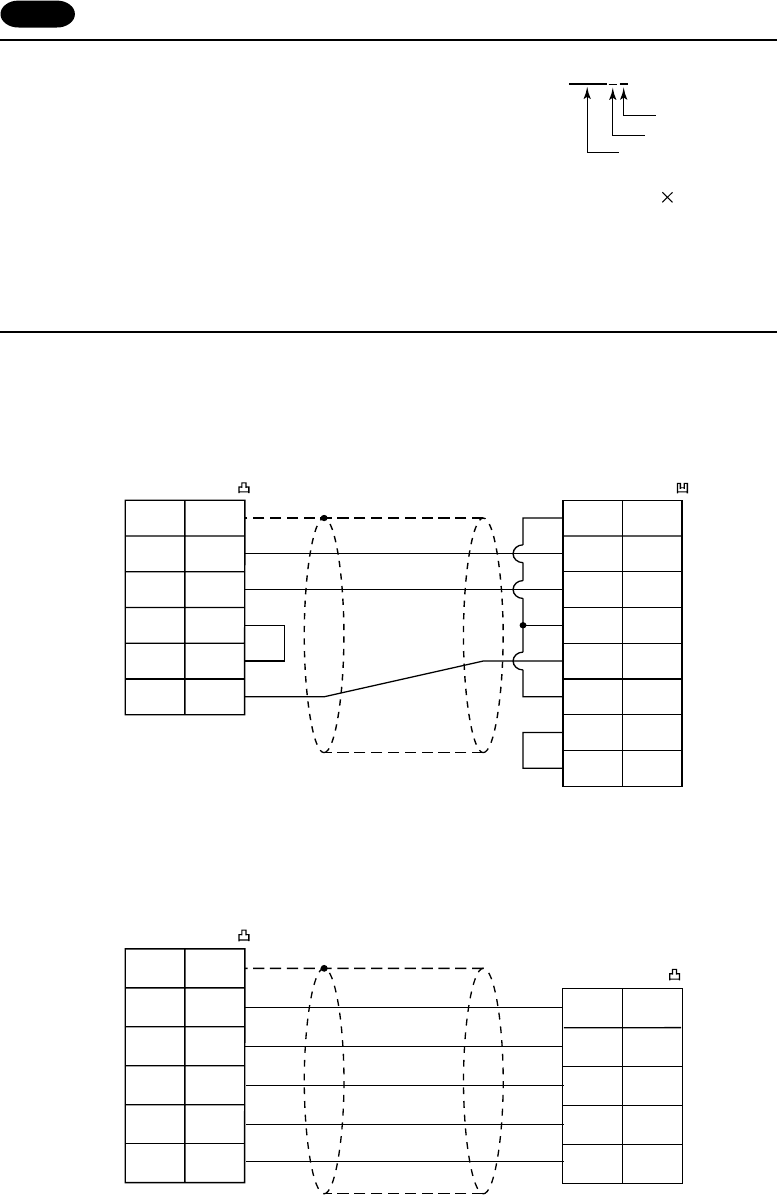

Wiring Diagram 1
The following is a diagram to show the wiring of the cable which connects ZM-
**
to PC.
* Use twist shielded cables.
2 SIEMENS PC • 3
Set the memory to the extent of the memory range of each PC model. In case of using the [Bit Write] memory as the
bit device of the [Output Action] is [Momentary W], the other bits will be cleared when the bit memory is output,
because the [Bit Write] will be output by one word (refer to P5-10, reference 14-7 of ZM-71SE Instruction Manual).
Use [TYPE] number to assign indirect memory for macro programs.
*1 In case of using DCP (drum count/set value), set the
drum step No.1 to 16.
The assigned memory is indicated while editing the
screen as illustrated:
<E.g.> DCP30000 : 1
Drum step No.
Address No.
Colon
RS-422
Wiring Diagram 2
ZM-
**
(CN1)
D-sub 25pin(Male: )
FG
SG
+SD
-SD
+RD
GND
PC
D-sub 9pin(Male: )
DI+
DI-
6
5
8
-RD
7
1
12
13
24
25
DO+ 1
DO- 7
* Use twist shielded cables.
- ZM-42/43/52/72/82 1
- ZM-42/43/52/72/82ZM 2
- Expression in this manual 2
- Series name 2
- Safety precautions 3
- 4) Maintenance 4
- Prohibit 4
- Contents 5
- Hardware 7
- Special Features 8
- Notes on Usage 9
- 1 Notes on Usage 10
- System Composition 11
- Control Terminal 12
- Support tools 13
- 1 System Composition 14
- Names of Components 16
- 1 Names of Components 17
- Dimensions and Panel Cut-out 18
- Do not remove this seal 19
- Unit : mm 20
- Dimensions of ZM-72 series 21
- Panel Cut-out of ZM-72 series 21
- Mounting Procedure 23
- Mounting Angle 23
- Electrical Wiring 24
- Grounding 25
- Wiring for communication 25
- Specifications 26
- Mounting Conditions 27
- Display Specifications 28
- 1 Specifications 29
- series) 30
- Drawing Environment 31
- Compatible PC for connection 32
- Serial Connector (CN1) 33
- CN1（Dsub 25pin 凹） 33
- Terminal Blocks of RS-422/485 34
- Setting of Dip Switches 35
- 1 Modular Jack 1 & 2 36
- Bar Code Reader Interface 37
- Printer Interface (CN2) 38
- Half pitch 36 pins 38
- Centronics 38
- Video Interface 39
- Connection 40
- 1 Connection 41
- (b) (c) (d) (e) 42
- [2] In case of the FL-net 45
- General purpose computer 46
- 1: 1 connection 46
- Main Menu 47
- PC I/F driver 48
- version and name 48
- I/O Test 49
- A. Self-loop Test 50
- 1 Operation of ZM 51
- Main Menu 51
- CN1 MJ1/2 52
- B. Printer Check 53
- C. Switch Check 53
- E. Main Menu 54
- Memory-Card 55
- Work nomally finished 56
- The [SYS] switch 58
- Installation 59
- In case of multi-link 60
- Attached unit 61
- Input/output circuit 62
- How to use 62
- LED condition display 63
- Modular Connector 63
- AC Adapter Connector 63
- Memory Card connector 63
- Printer Cable (ZM-80PC) 65
- ZM-42/43/52/72/82 Series 65
- Centronics 36pin 65
- Half pitch 36pin 65
- 1 2 Port Adapter (ZM-1MD2) 67
- Size drawing of ZM-1MD2 69
- Kinds of memory expansion 72
- Setting of ZM main body 72
- Handling precautions 73
- Connection to 76
- Link Module 76
- Sharp PC 77
- Switch Setting of Link module 78
- 2 Sharp PC 79
- 2 Sharp PLC 81
- • Connection with Z-311J/312J 83
- MITSUBISHI PC • 1 84
- 2 MITSUBISHI PC • 1 86
- D-sub 25pin(Male: ) 89
- MITSUBISHI PC • 2 90
- 2 MITSUBISHI PC • 2 92
- MITSUBISHI PC • 3 94
- MITSUBISHI PC • 4 96
- FX series CPU 97
- MITSUBISHI PC • 5 99
- Available Memory 100
- 2 MITSUBISHI PC • 5 101
- MITSUBISHI PC • 6 102
- MITSUBISHI PC • 7 103
- OMRON PC • 1 105
- Communication Setting 106
- Bank No 107
- Address No 107
- <E.g.> EM0:30000 107
- Wiring Diagram 1 108
- Wiring Diagram 2 108
- Wiring Diagram 3 108
- * Use twist shielded cables 109
- OMRON PC • 2 110
- HITACHI PC • 1 111
- Switch Setting 112
- HITACHI PC • 2 114
- Memory Bit Write TYPE Remarks 115
- Matsushita PC 117
- Switch Setting of Link Unit 118
- 2 Matsushita PC 119
- YOKOGAWA PC • 1 120
- YOKOGAWA PC • 2 122
- (E.g. 1 : D00001) 123
- Memory Type 123
- YASKAWA PC• 1 125
- Wiring Diagram 4 127
- YASKAWA PC• 2 128
- TOYOPUC PC 130
- Screen Editing (Memory Input) 132
- FUJI PC • 1 133
- <E.g.> W30 : 00002 134
- File No 134
- FUJI PC • 2 136
- FUJI PC • 3 139
- FUJI PC • 4 141
- Available PC 143
- 2 Koyo PC 146
- Wiring Diagram 5 147
- Wiring Diagram 6 147
- Allen-Bradley PC • 1 148
- 2 Allen-Bradley PC • 1 151
- Allen-Bradley PC • 2 153
- GE Fanuc PC • 1 157
- GE Fanuc PC • 2 159
- TOSHIBA PC 161
- TOSHIBA MACHINE PC 163
- SIEMENS PC • 1 165
- SIEMENS PC • 2 167
- D-sub 25pin(Male: ) 168
- D-sub 25pin(Male: ) 168
- D-sub 15pin(Male: ) 168
- 2 SIEMENS PC • 2 168
- SIEMENS PC • 3 169
- SIEMENS PC • 4 171
- SIEMENS PC • 5 173
- Shinko PC 175
- SAMSUNG PC 177
- KEYENCE PC • 1 179
- 2 KEYENCE PC• 1 180
- KEYENCE PC • 2 181
- KEYENCE PC • 3 184
- FANUC PC 189
- 2 FANUC PC 190
- FATEK AUTMATION PC 191
- MODICON PC 195
- YAMATAKE PC 197
- TAIAN PC 199
- 2.0v 5.2001 201
- Printed in Japan (0.1.Y.S) 201
