1 - 3
Switch to be used
in emergency
Emergency
Stop
ZM-42/43/52
ZM-72/82
Screw
Type
Screw Size
M3
M4
Torque (N • m)
0.29~0.49
0.49~0.69
Alcohol
BENZINE
BENZINE
Lock !

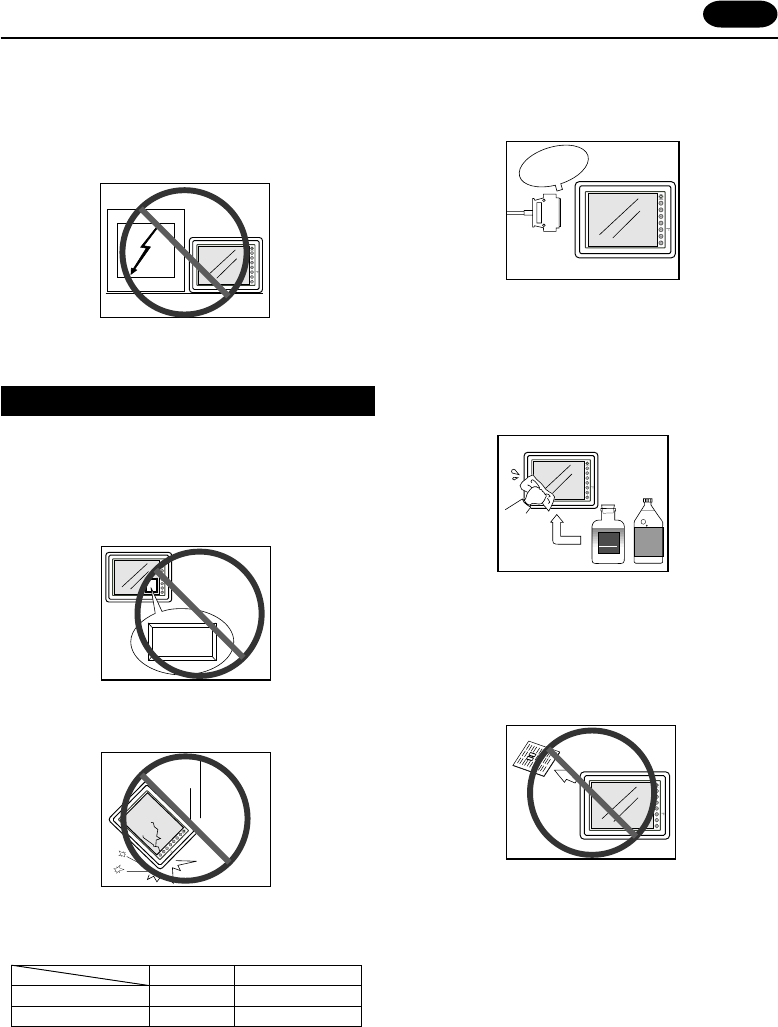

3. Never install Control Terminal in the same
compartment as high-voltage equipment. The
unit should be at least 200 mm away from high-
voltage lines or power cables.
Usage
1. An emergency stop circuit must be composed of
an external relay circuit with a start signal for
Control Terminal built in. Do not create switches
on Control Terminal to be used in case of
emergency.
2. Control Terminal has a glass screen. Never drop
or subject the unit to strong impacts.
3. Tighten mounting screws with the following
torques.
Note :Never fasten these screws too tightly,
otherwise the cover of Control Terminal may be
deformed.
4. Securely fasten and lock every connector for
each cable. Double-check this before turning the
power on.
5. In a dry environment, Control Terminal may
generate a large amount of static electricity.
Therefore, before touching the unit, touch a
grounded metallic section to discharge the static
electricity.
6. Application of thinner may discolor Control
Terminal. Use alcohol or benzine available
commercially for cleaning.
7. Never remove any printed circuit board from
Control Terminal. (This will harm the unit.)
1 Notes on Usage
