Bar Code Reader Interface
12
It is possible to receive the signal from a bar code reader by connecting a bar code reader to ZM-
**
via
the modular jack (MJ1/MJ2) of ZM-
**
series.
To connect a bar code reader to ZM-
**

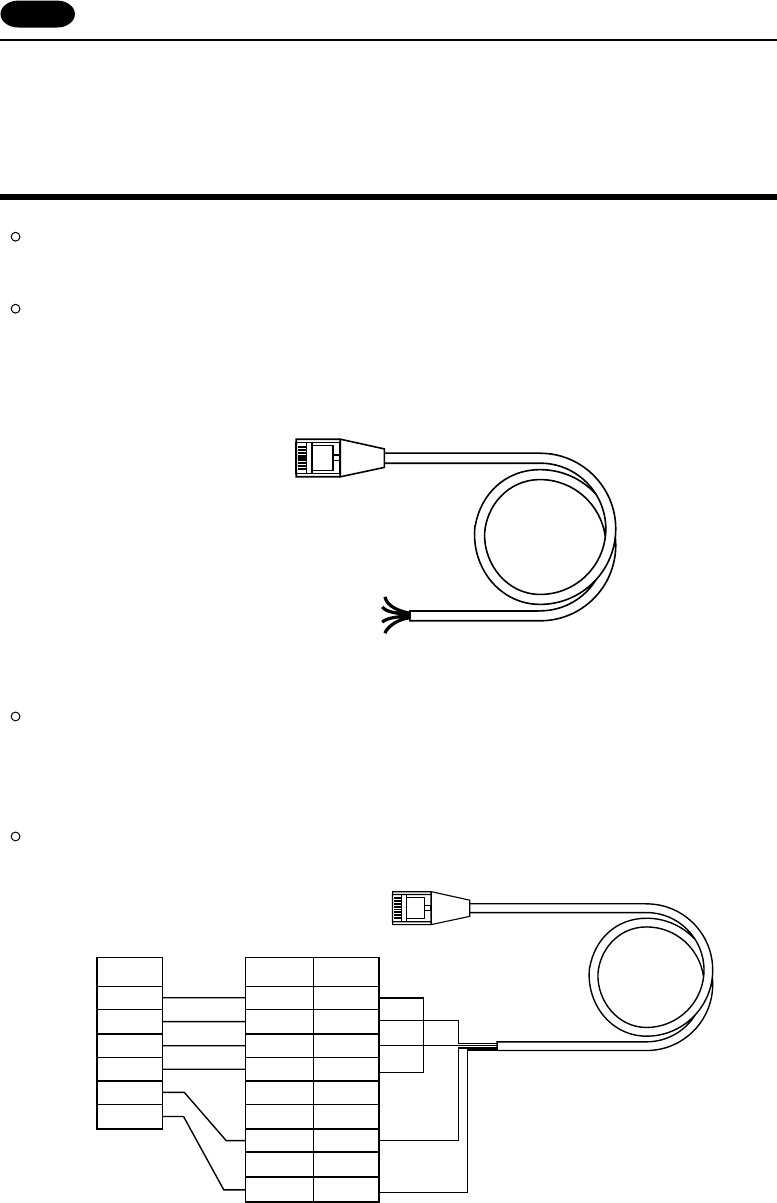

via MJ1/MJ2, use the cable use the Bar Code Connecting Cable
ZM-80BC which is the optional equipment made only by demand.
Length : 2m
Accessory : Modular Plug
Notes on Connection
• In case of using the bar code reader which uses the CTS and RTS control, the bar code reader may not
work normally without jumping RTS and CTS.
• The output power supply (+5V) is max. 150mA. (Refer to the preview page.)
When the bar code reader connected to ZM-41/70 Series is used, connect it to ZM-
**
by the following
cable.
Pin No.
1
2
3
4
5
6
7
8
9
Signal
CTS
RXD
TXD
RTS
SG
+5V
Red : 0V
Orange : RXD
Yellow : TXD
Brown : +5V
12345678
* Jump pins, 1(CTS) and 4(RTS).
D-sub 9pin（凹）
Signal
RTS
TXD
RXD
CTS
SG
+5V
Barcode Reader
*
Red : 0V
Orange : RXD
Yellow : TXD
Brown : +5V
12345678
