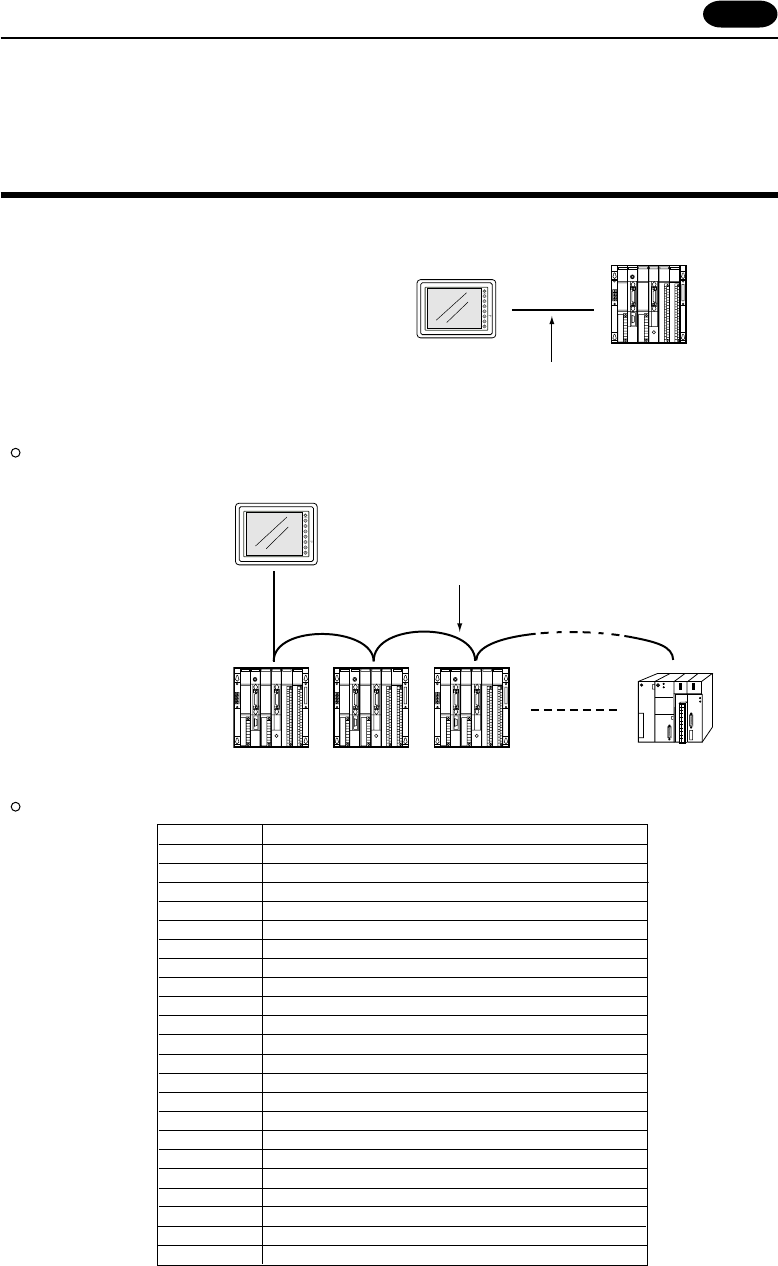

15-1 Connection with Sharp PLC
[1] 1 : 1 Link Communication
One ZM-
**
and one PLC are connected.
[2] 1 : n Link Communication (Multi-drop)
One ZM-
*
2 and multiple PLCs are connected. (n = 1 to 32)
ZM-
**
PLC1 PLC2 PLC3
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
¥ ¥ ¥
run
stop
PLCn
RS-485 Maximum length 500m
Connection
15
Manufacturer
SHARP
MITSUBISHI
OMRON
HITACHI
MATSUSHITA
YOKOGAWA
YASKAWA
TOYOPUC
FUJI
Koyo
Allen-Bradley
GE Fanuc
TOSHIBA
SEIMENS
Kamigo
SAMSUNG
KEYENCE
LG
FATEK
IDEC
TAIAN
Models
JW series, JW70/100 COM port, JW20/30 COM port
An/A/N/U series, QnA series, Net10, FX series (A protocol)
SYSMAC C series, CV series, CQM1 series, CS1
HIDIC-H
MEWNET
FA500, FA-M3
Memobus
TOYOPUC
MICREX-F, FLEX-PC, NJ computer link
SU/SG, SR-T
PLC-5, SLC500, Micro Logix 1000
90 series
T series
S7-200 PPI
SELMART
SPC series, N plus, SECNET
KZ series, KV series
MASTER-K500 / K1000
FACON FB series
MICRO 3
TP02
General purpose serial
ZM-
**
PLC
RS-232C or RS-422(RS-485)
1 Connection
Available PLC for multi-link communication
