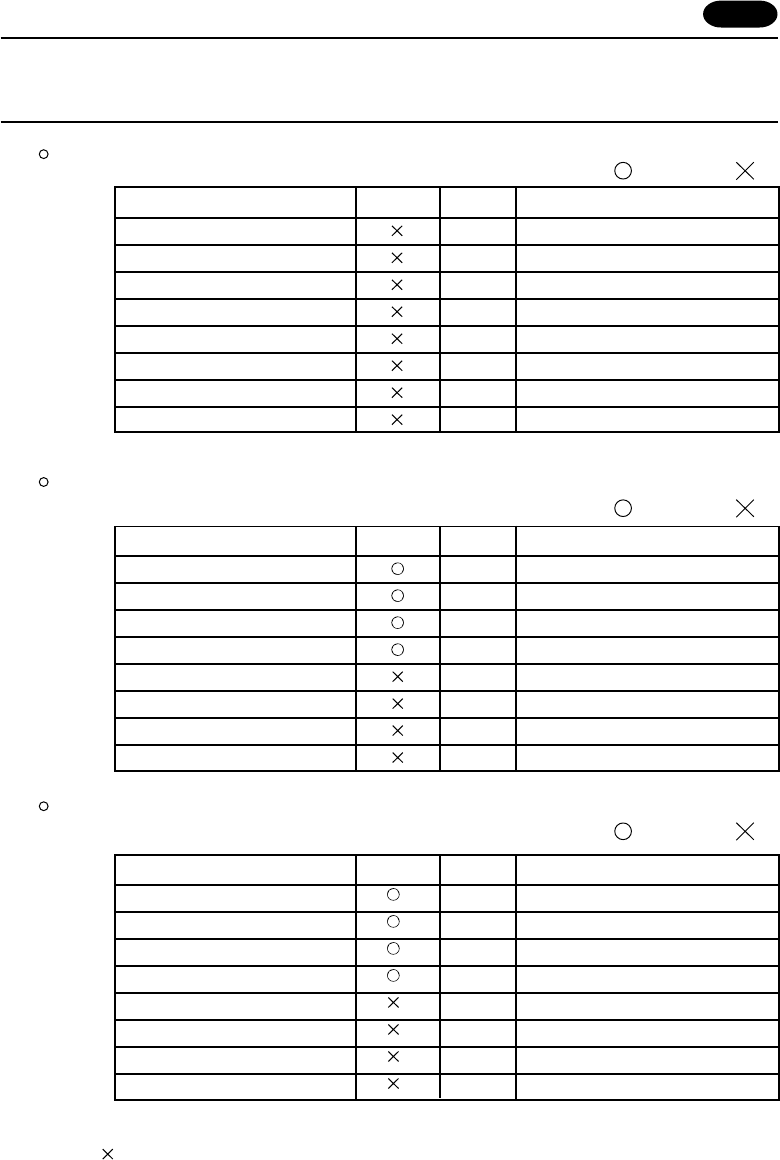

Memory
Bit Write TYPE Remarks
P (input/output) 0 Input : read only
M (relay) 1
L (link relay) 2
K (keep relay) 3
F (special relay) 4 Read only
T (timer/current value) 5
C (counter/set value) 6
D (data register) 7
K500/1000
2 LG PC
Set the memory to the extent of the memory range of each PC model. In case of using the
[Bit Write] memory as the bit device of the [Output Action] is [Momentary W], the other
bits will be cleared when the bit memory is output, because the [Bit Write] will be output
by one word (refer to P5-10, reference 14-7 of ZM-71SE Instruction Manual). Use [TYPE]
number to assign indirect memory for macro programs.
Available: Unavailable:
Available Memory
Memory
Bit Write TYPE Remarks
D (data register) 0
M (auxiliary relay) 1
P (input/output relay) 2 Input : Read only
K (keep relay) 3
TC (timer/current value) 4
CC (counter/current value) 5
TS (timer/set value) 6
CS (counter/set value) 7
K10/60/200
Available: Unavailable:
K200S/300S/1000S
Memory Bit Write TYPE Remarks
P (input/output) 0 Input : read only
M (relay) 1
L (link relay) 2
K (keep relay) 3
F (special relay) 4 Read only
T (timer/current value) 5
C (counter/set value) 6
D (data register) 7
Available: Unavailable:
