4.23 Fluorescent Lamp Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-103
2. Install the source PCB.
1) Install the source PCB. Be careful not to apply excessive force to the TCP.

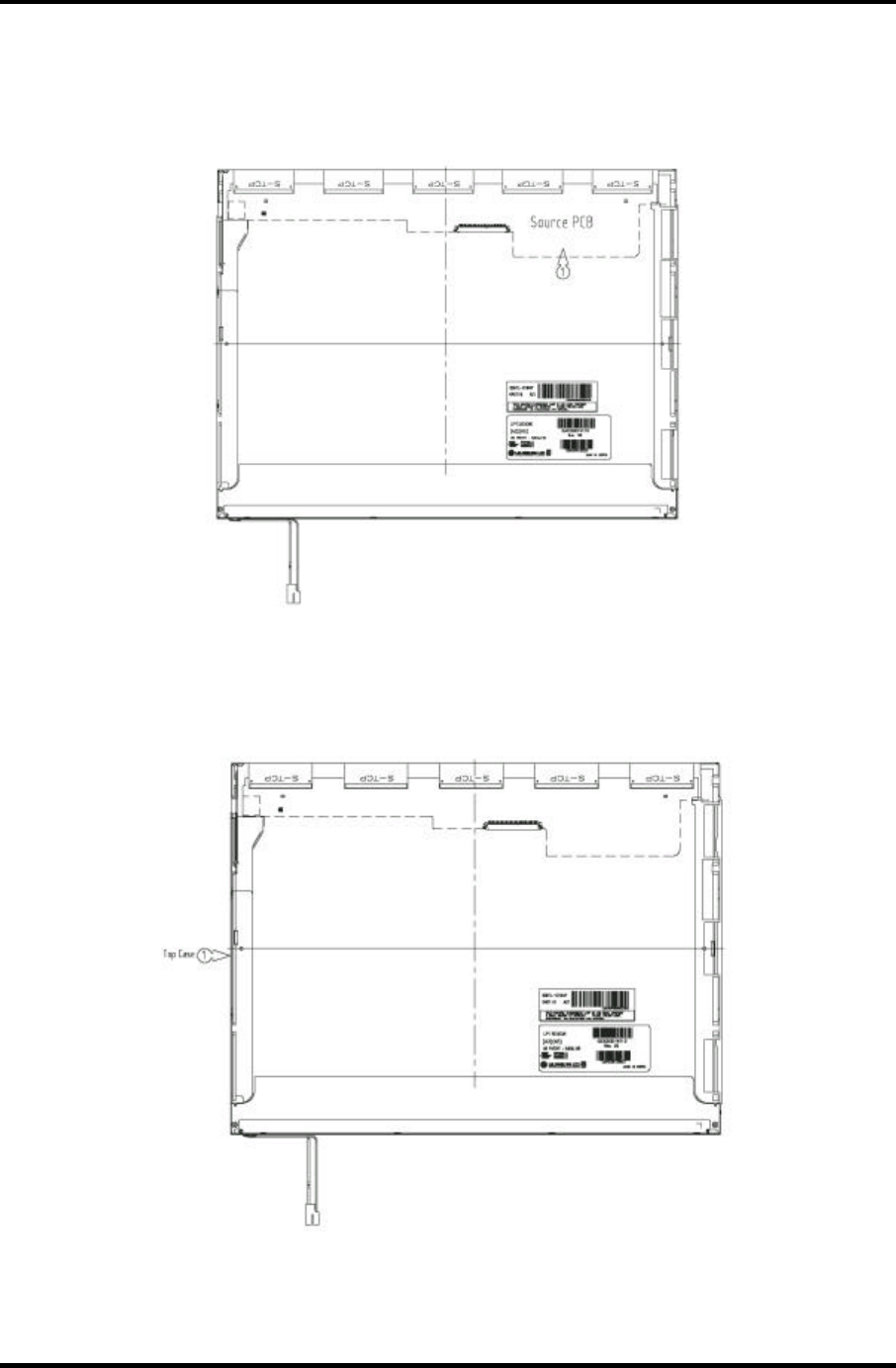

Figure 4-90 Replacing 15.0 Inch LG.Philips fluorescent lamp (XGA) (6)
3. Install the top case.
Figure 4-91 Replacing 15.0 Inch LG.Philips fluorescent lamp (XGA) (7)
