4 Replacement Procedures 4.7 Cooling Fin/CPU

4-24 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)

Installing the Cooling fin/CPU

The following describes the procedure for installing the cooling fin/CPU (See Figure 4-11 to

4-16).

1. Check that the mark on the cam is in the unlocking position.

2. Attach the CPU to the correct position in the CPU socket.

CAUTION: Place the CPU in such direction as shown below. (Pay attention to the

position of the triangle mark on the CPU.)

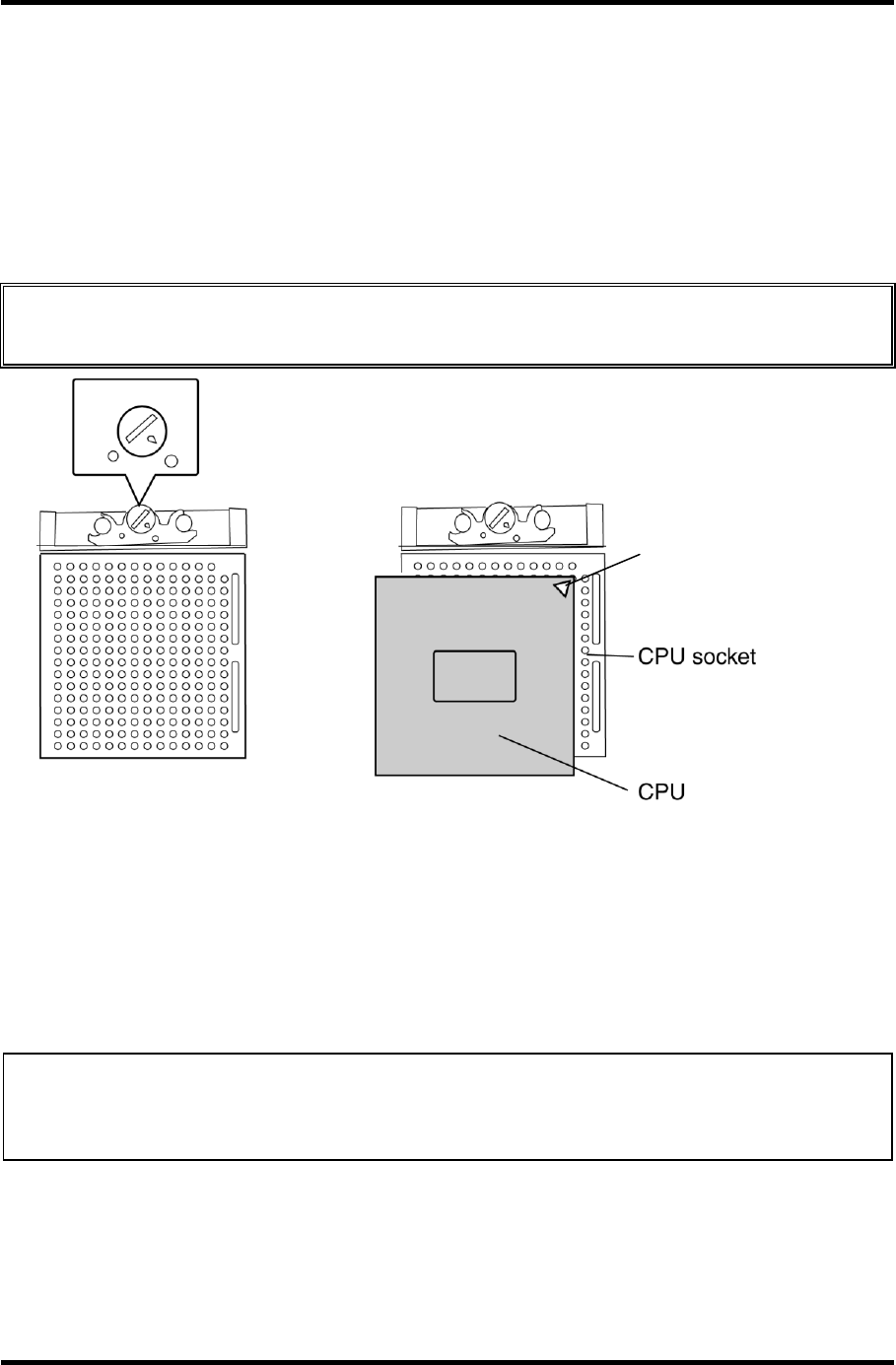

Figure 4-15 Installing CPU

3. Fix the CPU by rotating clockwise the cam by 90 degrees with a flat-blade

screwdriver.

4. If there is already silicon grease on the CPU and cooling fin, clean it with a cloth.

Using a special applicator, apply quarter of scale (0.25ml) of silicon grease evenly on

the CPU chip.

NOTE: If silicon grease has already been applied to the CPU or cooling fin, wipe clean

with a cloth and apply new silicon grease. The computer will not operate correctly if the

CPU is not firmly in contact with the cooling fin.

Triangle mark
