4.7 Cooling Fin/CPU 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-21
4.7 Cooling Fin/CPU
Removing the Cooling fin/CPU
The following describes the procedure for removing the cooling fin/CPU (See Figure 4-11 to
4-14).
1. Remove the following screws fixing the CPU cover and remove the CPU cover.
? M2.5x14B THIN BIND screw x1
? M2.5x18B THIN BIND screw x1

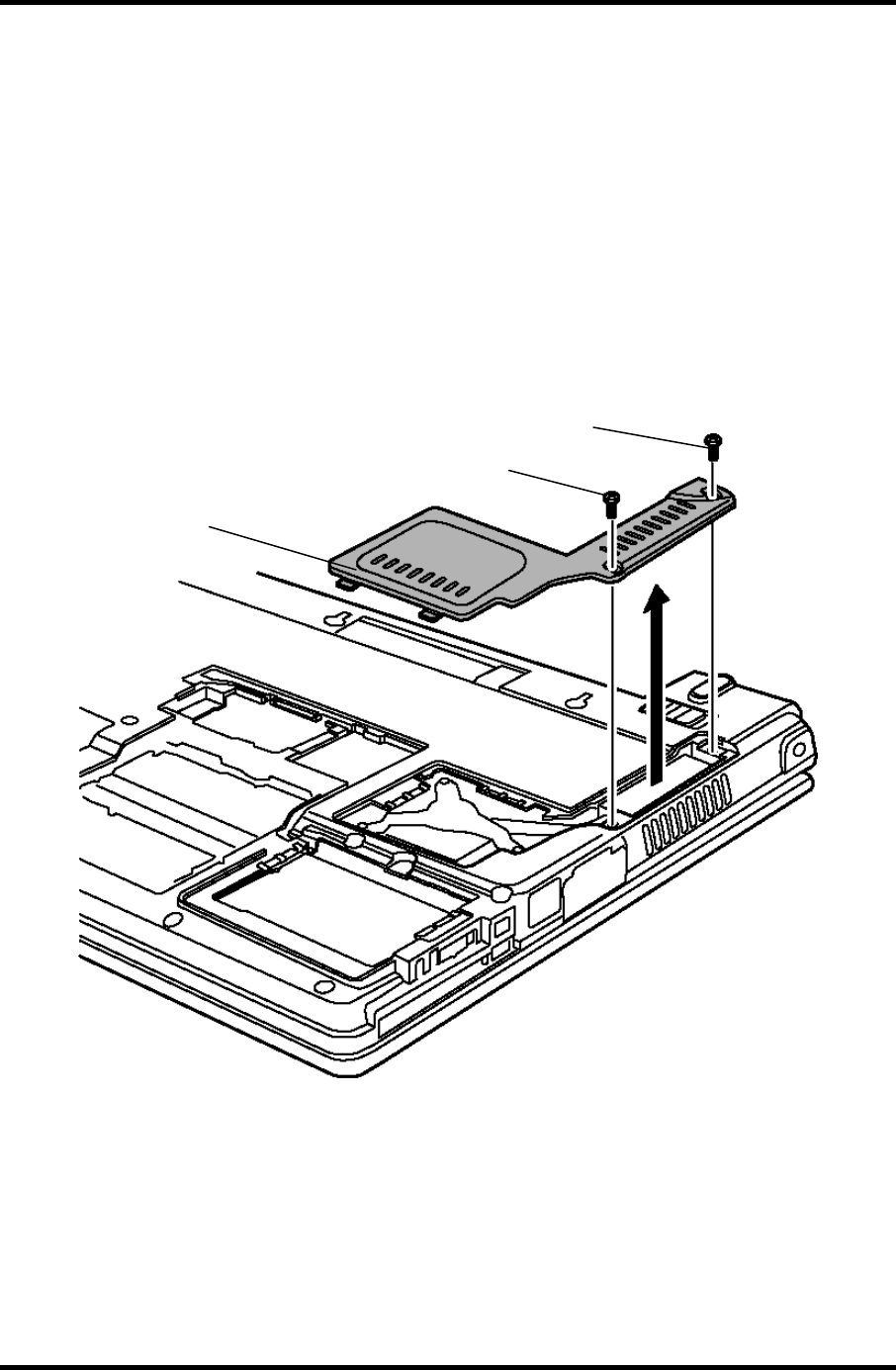

Figure 4-11 Removing CPU Cover
M2.5x18B THIN BIND
M2.5x14B THIN BIND
CPU Cover
