Replacement Procedures 4.23 Fluorescent Lamp
4-102 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
Assembling the 15.0-inch XGA LG.Philips Fluorescent lamp
To assemble the 15.0-inch XGA LG.Philips fluorescent lamp, follow the steps below and refer to
Figures 4-89 to 4-92.
1. Install the cover assembly bottom, sheets, light guide, adhesive tape and board assembly.
1) Secure the cover assembly bottom with the two screws.
2) Install the light guide and sheets. (Secure the reflection sheets with double-sided
tape.)
NOTE: No penetration of foreign object is indispensable not to scratch the surface of the
sheets.
3) Stick the adhesive tape to fix the sheets.
4) Install the board assembly.
NOTE: Do not apply excessive force to the PCB and TCP.

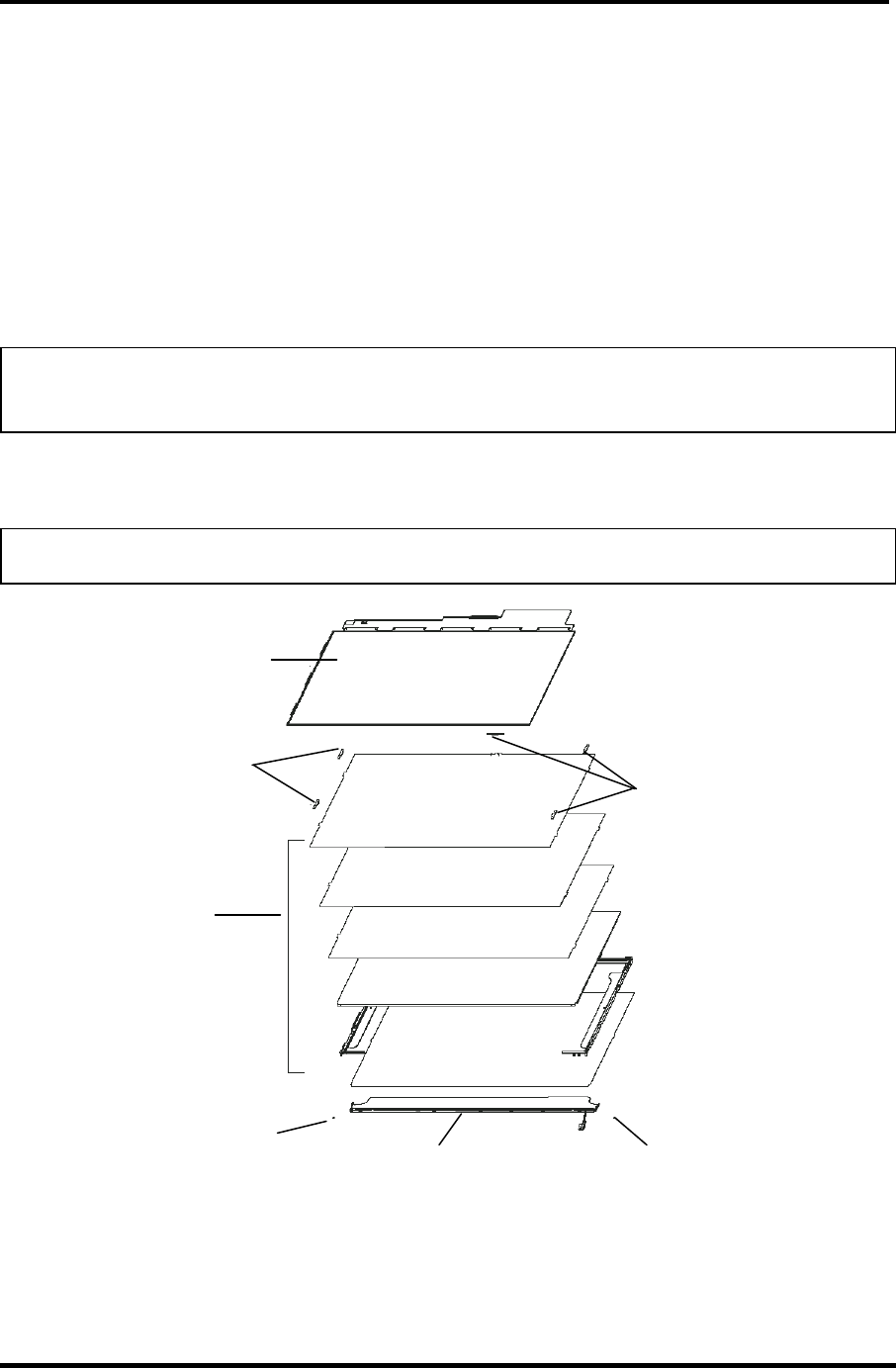

Figure 4-89 Replacing 15.0 Inch LG.Philips fluorescent lamp (XGA) (5)
Board assembly
Adhesive tape
Adhesive tape
Sheets
&
Light guide plate
Screw
Screw
Cover assembly bottom
