INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER
1

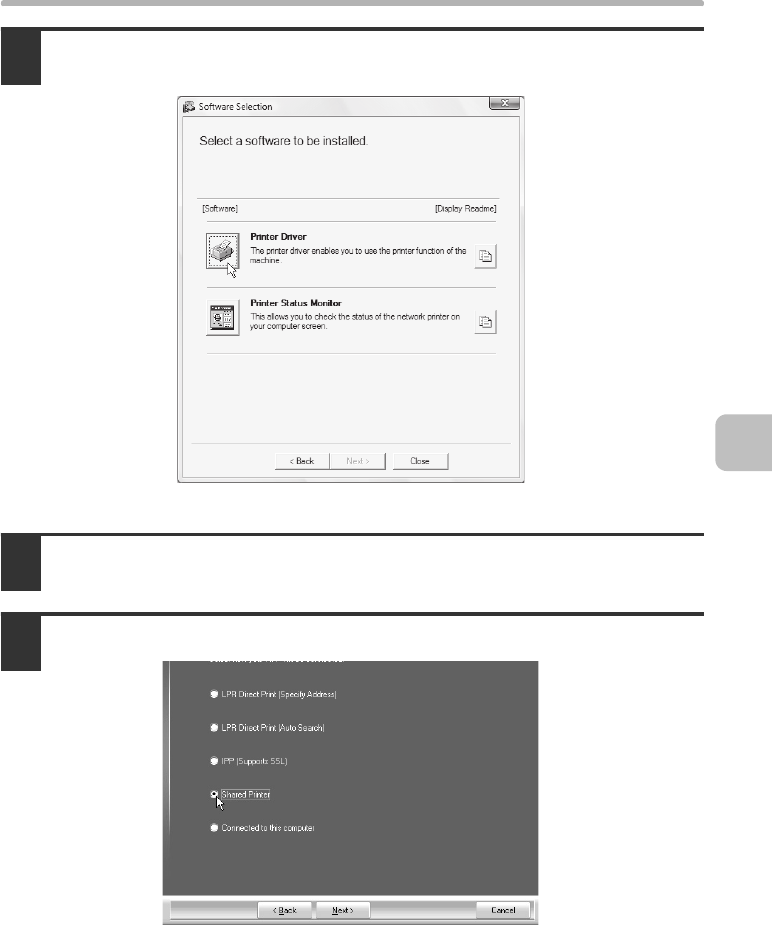

Click the [Printer Driver] button.
To install the PC-Fax driver, click the [PC-Fax Driver] button on the "Disc 2" CD-ROM.
*The above screen appears when using the "Disc 1" CD-ROM.
2
Click the [Custom installation] button.
3
Select [Shared Printer] and click the [Next] button.
!mxc381_us_ins.book 31 ページ ２００８年８月１９日 火曜日 午前１０時４２分
