APPENDIX

App. - 24

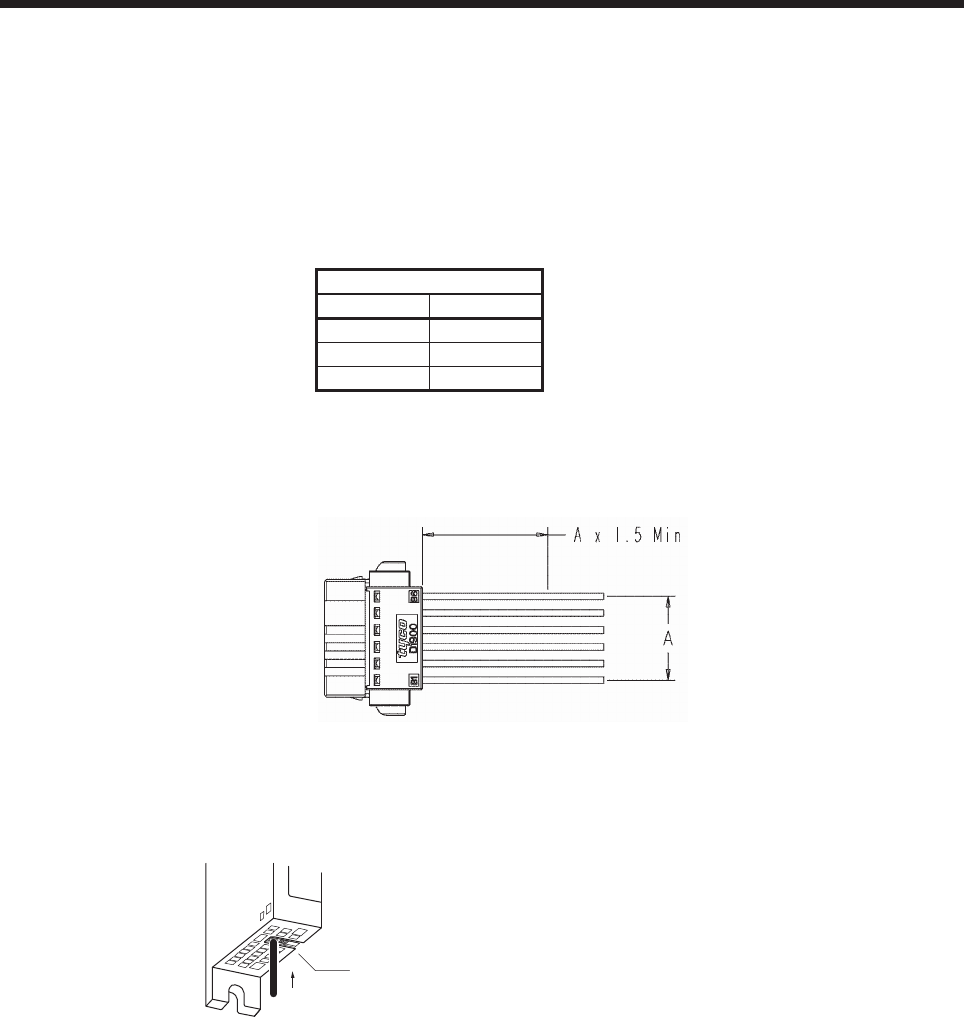

(3) Connector insertion

Insert the connector all the way straight until you hear or feel clicking. When removing the connector,

depress the lock part completely before pulling out. If the connector is pulled out without depressing the

lock part completely, the housing, contact and/or wires may be damaged.

(4) Compatible wire

Compatible wire size is listed below.

Wire size

AWG

0.22 24

0.34 22

0.50 20

(5) Others

(a) Fix a wire tie at least distance of "A" × 1.5 away from the end of the connector.

(b) Be sure that wires are not pulled excessively when the connector is inserted.

App. 7.8.4 Wiring FG

ᐩ㕙

࡝࡯࠼✢

Wire range

Single wire: ĳ 0.4 mm to 1.2 mm (AWG 26 to AWG 16)

Stranded wire: 0.2 mm

to 1.25 mm

(AWG 24 to AWG 16),

wire ĳ 0.18 mm or more

Bottom

face

Lead wire
