39
REPLACING SUPPLIES AND MAINTENANCE
5

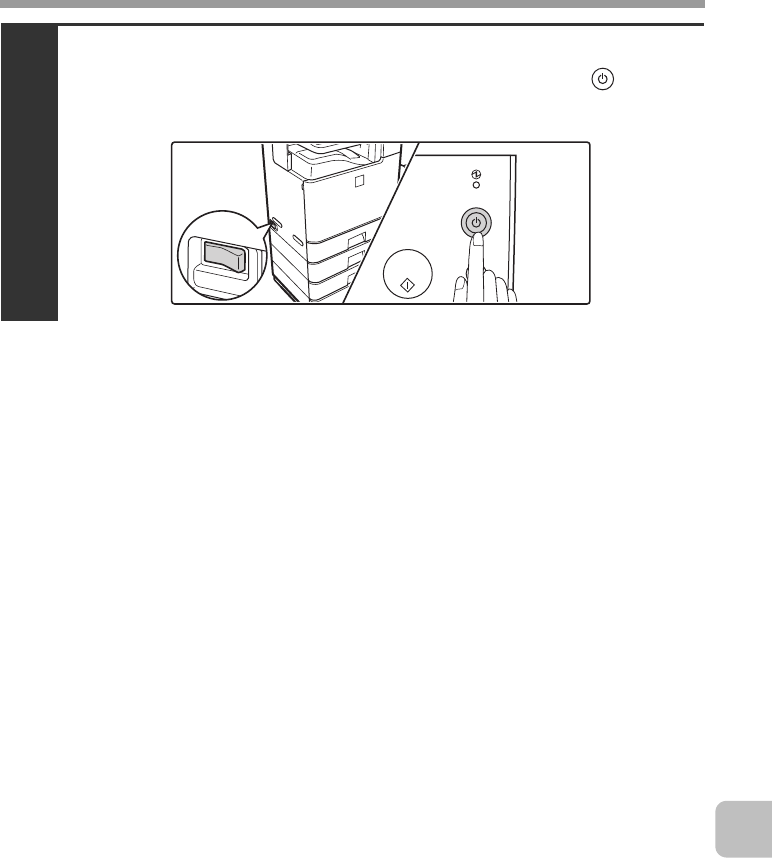

Turn on the power.
Switch the main power switch "ON" and press the [POWER] key ( ) on the
operation panel to turn on the operation panel power.
mxc401_us_saf.book 39 ページ ２００８年１０月１５日 水曜日 午前１１時５２分
