Preparation before Use
2-45

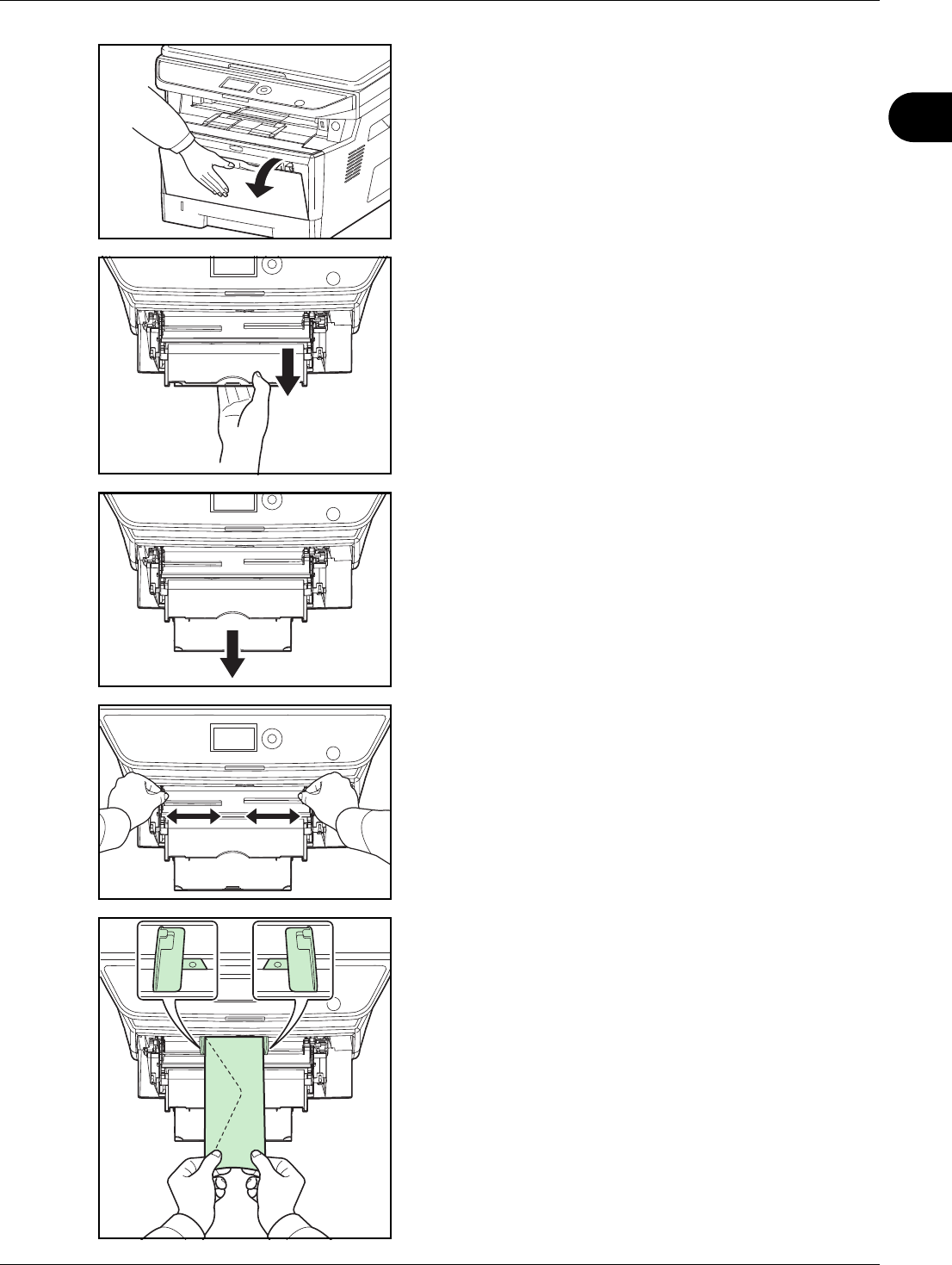

1 Pull the MP tray towards you until it stops.
2 Pull out the subtray.
3 Adjust the position of the paper guides on the MP tray.
Standard paper sizes are marked on the MP tray or
Manual Feed tray. For standard paper sizes, slide the
paper guides to the corresponding mark.
4 Align the paper with the paper guides and insert as far as
it will go.
