41
Mac OS 9

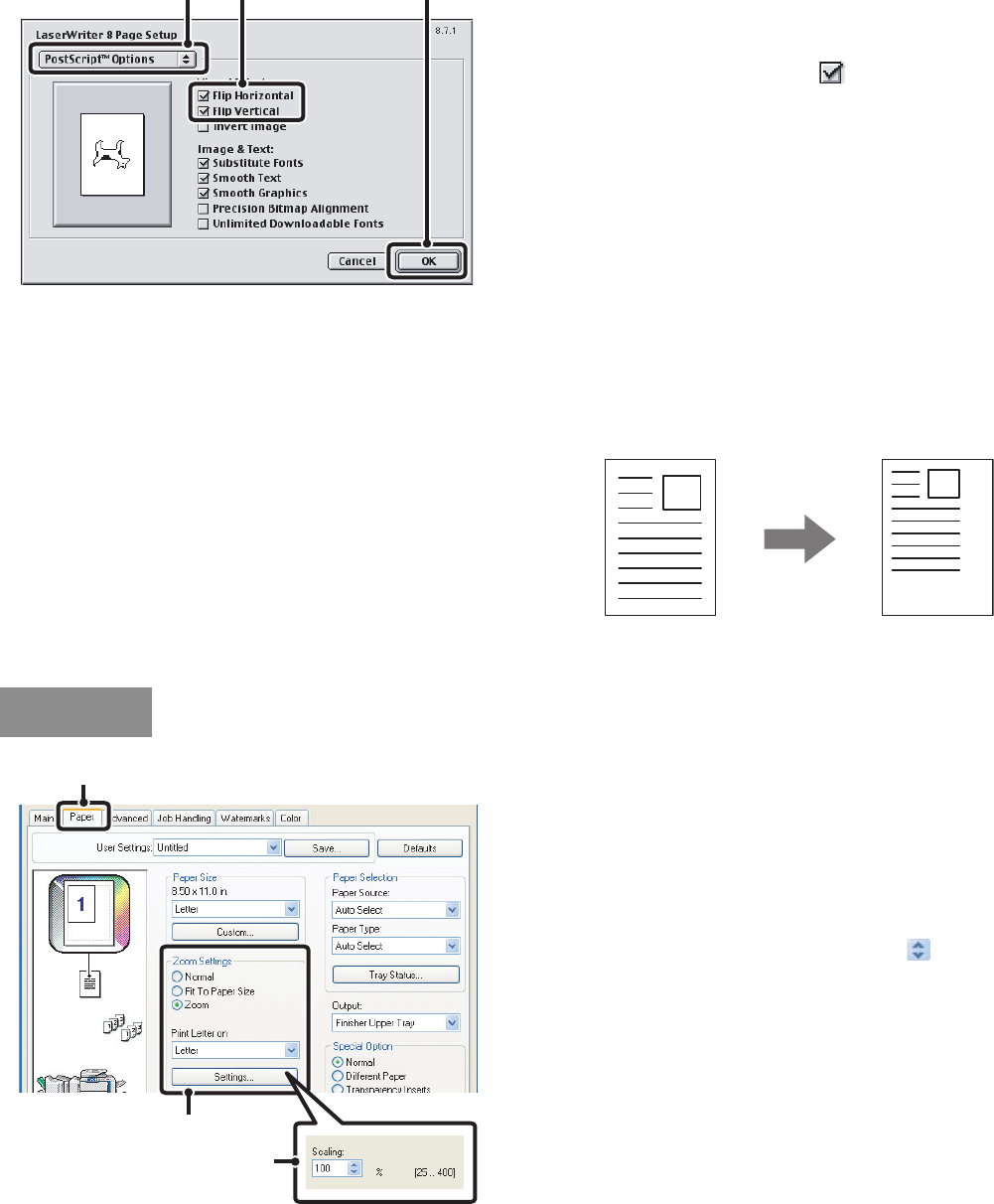

(1) Select [Page Setup] from the [File] menu
and select [PostScript Options].
(2) Select the [Flip Horizontal] and [Flip
Vertical] checkboxes .
The print image will show an image of the print result.
(3) Click the [OK] button.
ENLARGING/REDUCING THE PRINT IMAGE
(Zoom/XY-Zoom)
This function is used to enlarge or reduce the image to a
selected percentage. This allows you to enlarge a small
image or add margins to the paper by slightly reducing
an image.
When using the PS printer driver (Windows), you can set
the width and length percentages separately to change
the proportions of the image. (XY-Zoom)
(1) Click the [Paper] tab.
(2) Select [Zoom] and click the [Settings]
button.
The actual paper size to be used for printing can be
selected from the pull-down menu.
(3) Select the zoom ratio.
Directly enter a number (%) or click the button to
change the ratio in increments of 1%.
(1) (2)
(3)
Windows
(1)
(2)
(3)
