52
5

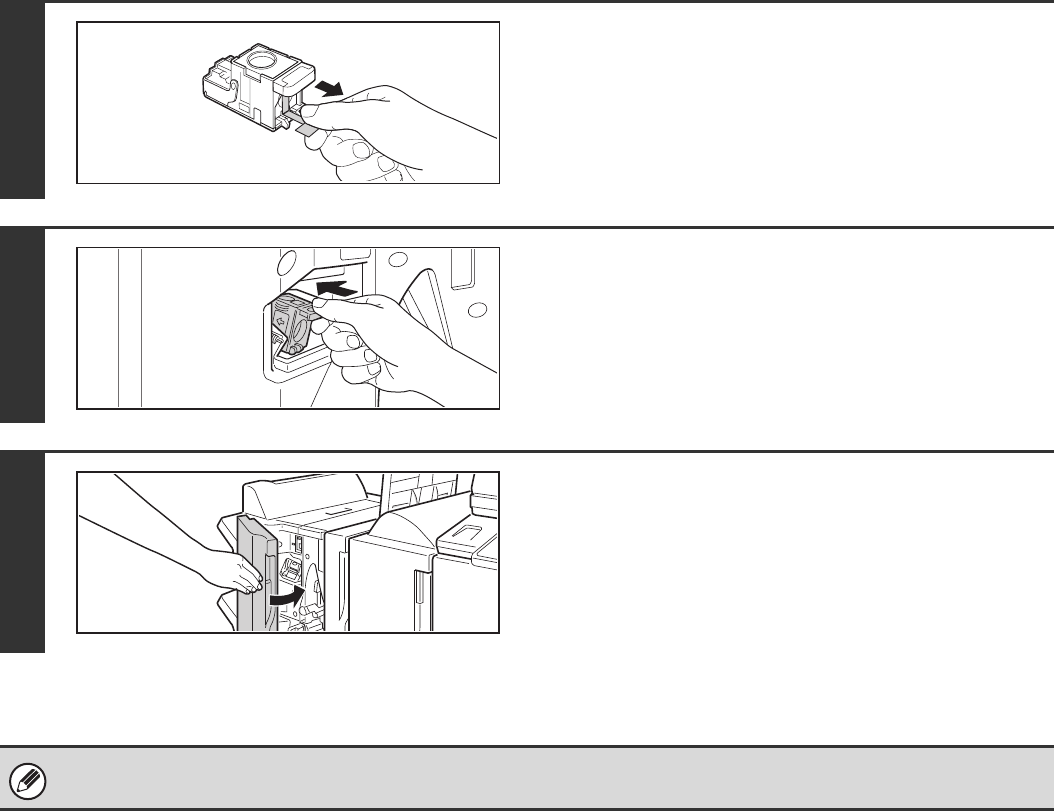

Pull the seal that holds the staples
straight out.
6
Push the staple case firmly back in.
Push the staple case in until it clicks into place.
7
Close the front cover.
Make a test print or copy in staple sort mode to verify that stapling takes place correctly.
