No.9/16

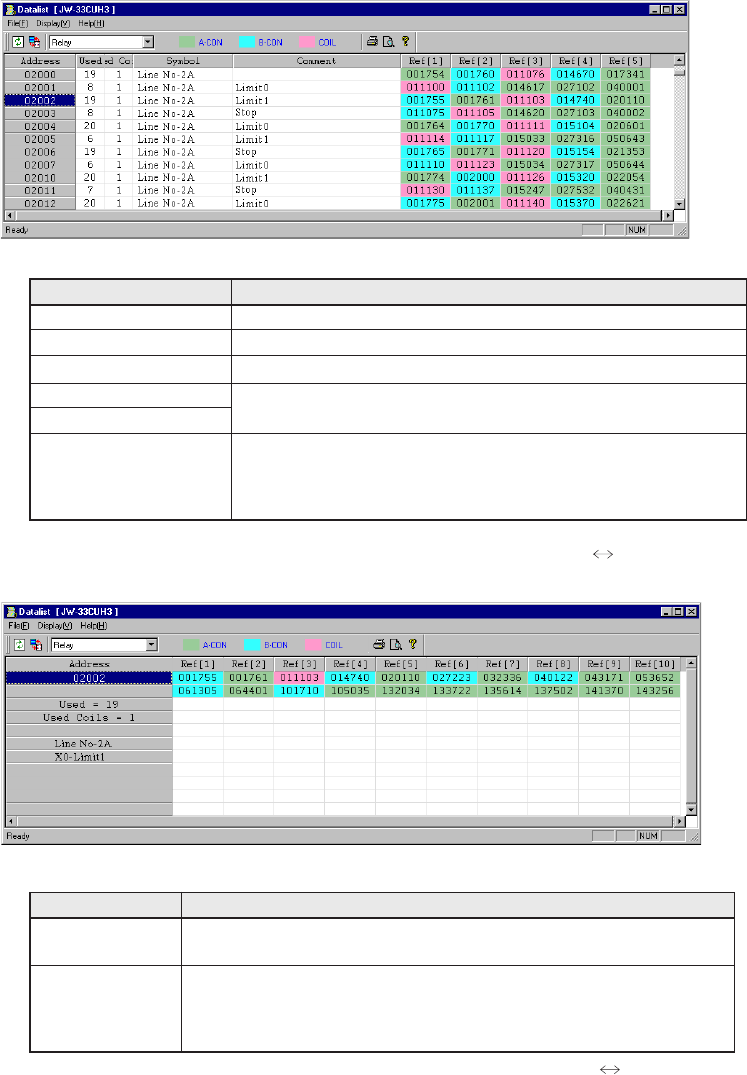

[7] Data list display is changed -> See page 5-38 through 41, 9-18 and 9-22.

The changes shown below are made to the [Data List] dialog box that is displayed by clicking on [Display]

– [Data List] on the menu bar in the [Program Ladder]/[Program/Command].

Items

Address

Number of Address Used

Number of Address Used (coil)

Symbol

Comment

Items

Address

Description

Relay (register) address, number of address used, number of address

used (coil), symbol, comment

Program address in use (all)

・In case that a relay is used as a contact, contact A, B and coil are

displayed in different color. (For details about the colors, refer to No.

11 on page 16.)

Description

Relay address, register address, etc.

Number of address used as a contact in the program

Number of address used as a coil in the program

Symbol/Comment are displayed if they are registered in an address.

Program address in use (10 addresses max.)

・In case that a relay is used as a contact, contact A, B and coil are

displayed in different color. (For details about the colors, refer to

No. 11 on page 16.)

(Display example: 1-line display screen)

(Display example: Detailed display screen)

The detailed display screen appears when you click on [Display] – [1-line Display Detailed Display

Selection] on the menu bar of the dialog box above.

・The 1-line display screen returns if you click on [Display] – [1-line Display Detailed Display

Selection].

Ref. [1] to [10]

(Cross reference)

Ref. [1] to [10]

(Cross reference)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
