[9] Timer/counter 1024 points (for JW50H/70H/100H) are supported

Timer counter 1024 points for the PC model: JW50H/70H/100H are supported.

Cautions when the timer/counter 1024 points are set up.

1. The relay address from 13000 to 14777 is not displayed on any screen of [Data Memory,

Symbol/Comment, Data List, any Multipoints Monitor].

2. When change over from 512 points to 1024 points or vice versa, using the system memory, the

following alarm message will appear.

・512 points -> 1024 points

[Relay 1300 to 14777 is changed to timer/counter contact 1000 to 1777.

・1024 points -> 512 points

Timer/counter contact 1000 to 1777 is changed to relay 13000 to 14777.

3. Unused address for TMR/CNT000 to 777 will be displayed as [NU***] on the timer/counter (data

memory) monitor, and unused address for TMR/CNT1000 to 1777 will be displayed as [TMR****].

(Example of display)

Unused

Used

No.13/16

Selection of series

Remarks

JW-100CUH, JW-100CUH(expansion relay)

JW-70CUH, JW-70CUH(expansion relay)

JW-50CUH, JW-50CUH(expansion relay)

Selection of model



JW50/70/100H

[10] JW-50CUH (expansion relay) and JW-70CUH (expansion relay) are included in the

selection of model -> See page 5-5.

JW-50CUH (expansion relay) and JW-70CUH (expansion relay) are included in the selection of model

JW50/70/100H series.

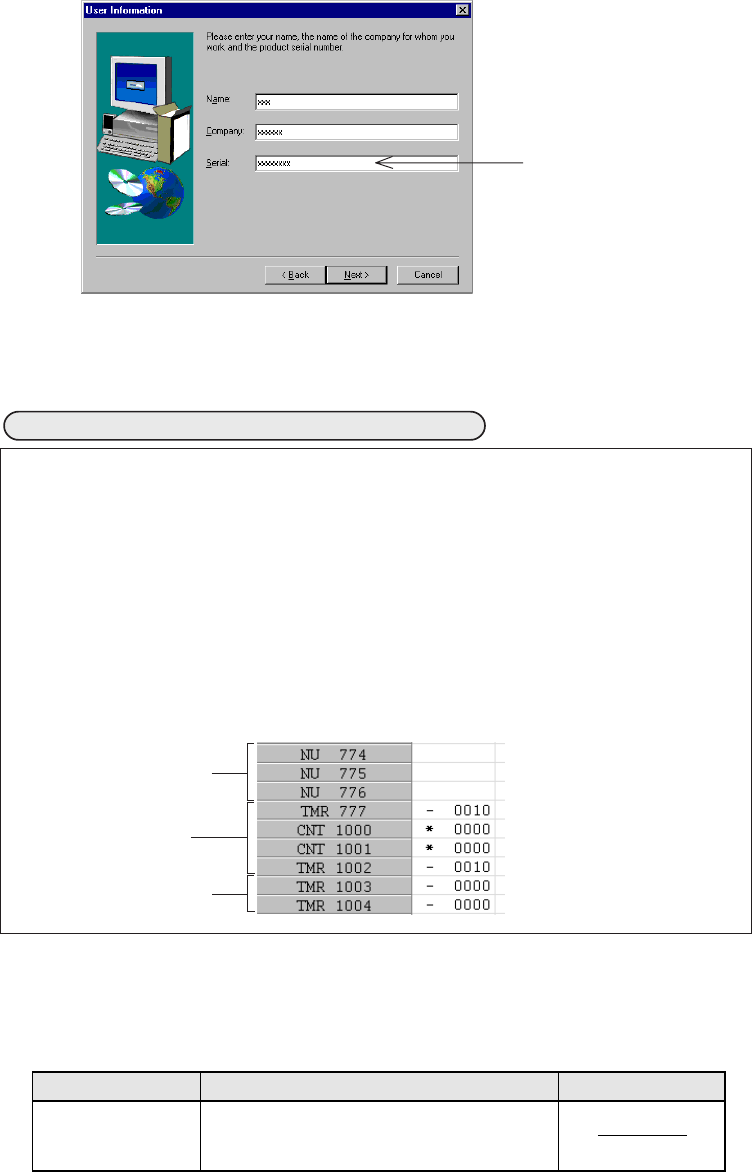

[8] Serial number input during setup procedures is added -> See page 2-1

Serial number input column is added on the dialog box that appears after you are all set for the setup

program.

The serial number is given on the case of the CD-ROM for JW-100SP.

Serial number

1 2 ... 8 9 10 11 12 13 14 15 16
