Controlling the Image Quality

DRAFT CS 9300 System User Guide (SM748)_Ed 01 7–3

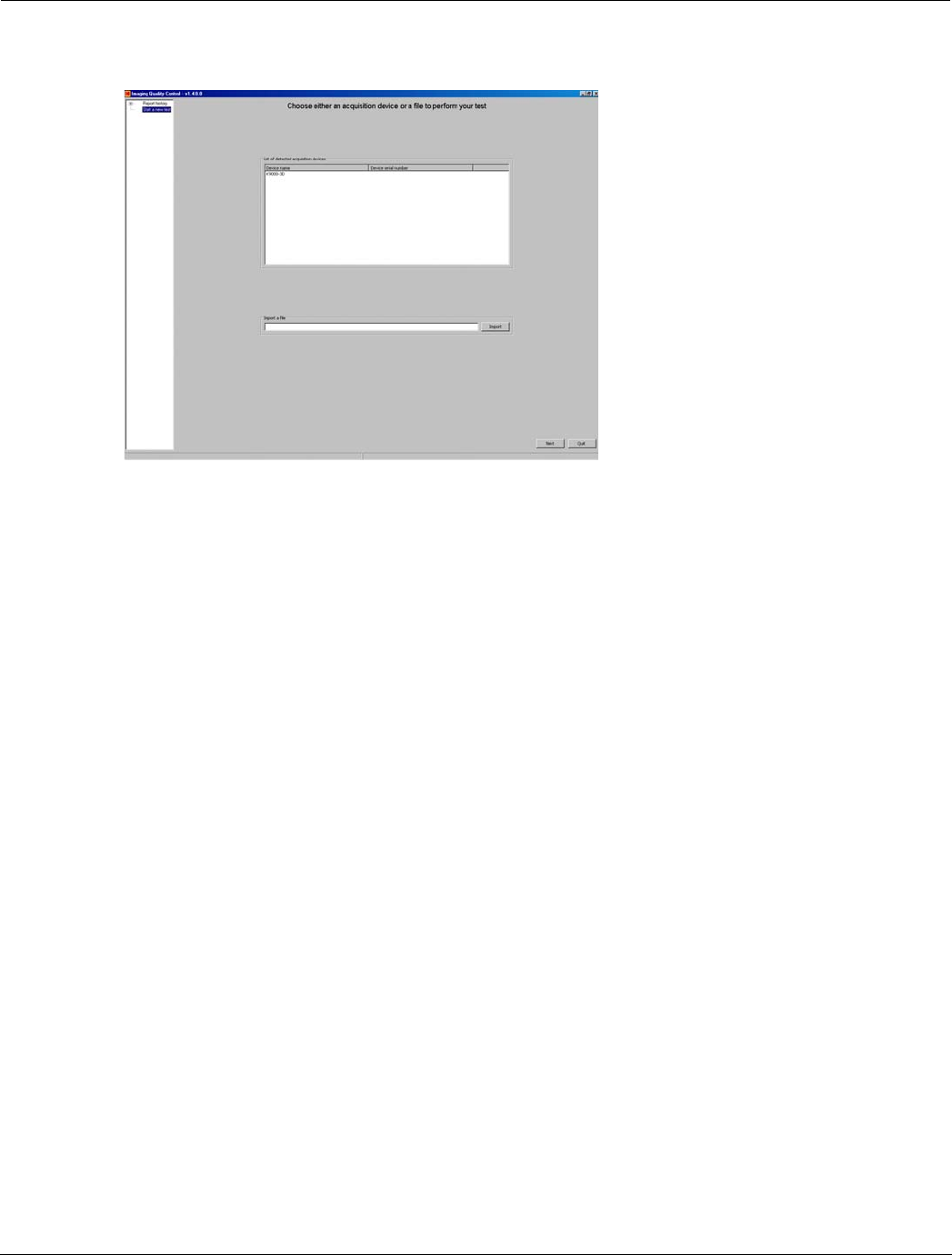

3. In the Too l s pane, double-click Quality Assurance Control. The Image Quality

Control window is displayed.

4. In the Image Quality Control window, to perform the test, you can either:

 Select the desired device in the List of detected acquisition devices field.

 Browse and import a file in the Import field.

Click Next and follow the instructions.

5. Select the desired test and follow the on-screen instructions.

You have two test options:

 Constancy test: This test must be executed regularly by the user. The result of

the tests must be compared to the Acceptance test. Select the desired test and

follow the on-screen instructions.

 Acceptance test: This test is ONLY executed by the technician. It is a complete

image quality control test (make sure you have the required test tools). The result

of this test is used as reference for the Constancy test by the user.
