Acquisition Interface

CS 9300 System User Guide (SM748)_Ed 01 3–5

Patient Pane

The Patient Pane enables you to choose different patient parameters. The selection of

the patient parameters influences the quality of the image. The selected parameters must

be based on the age and morphology of the patient .

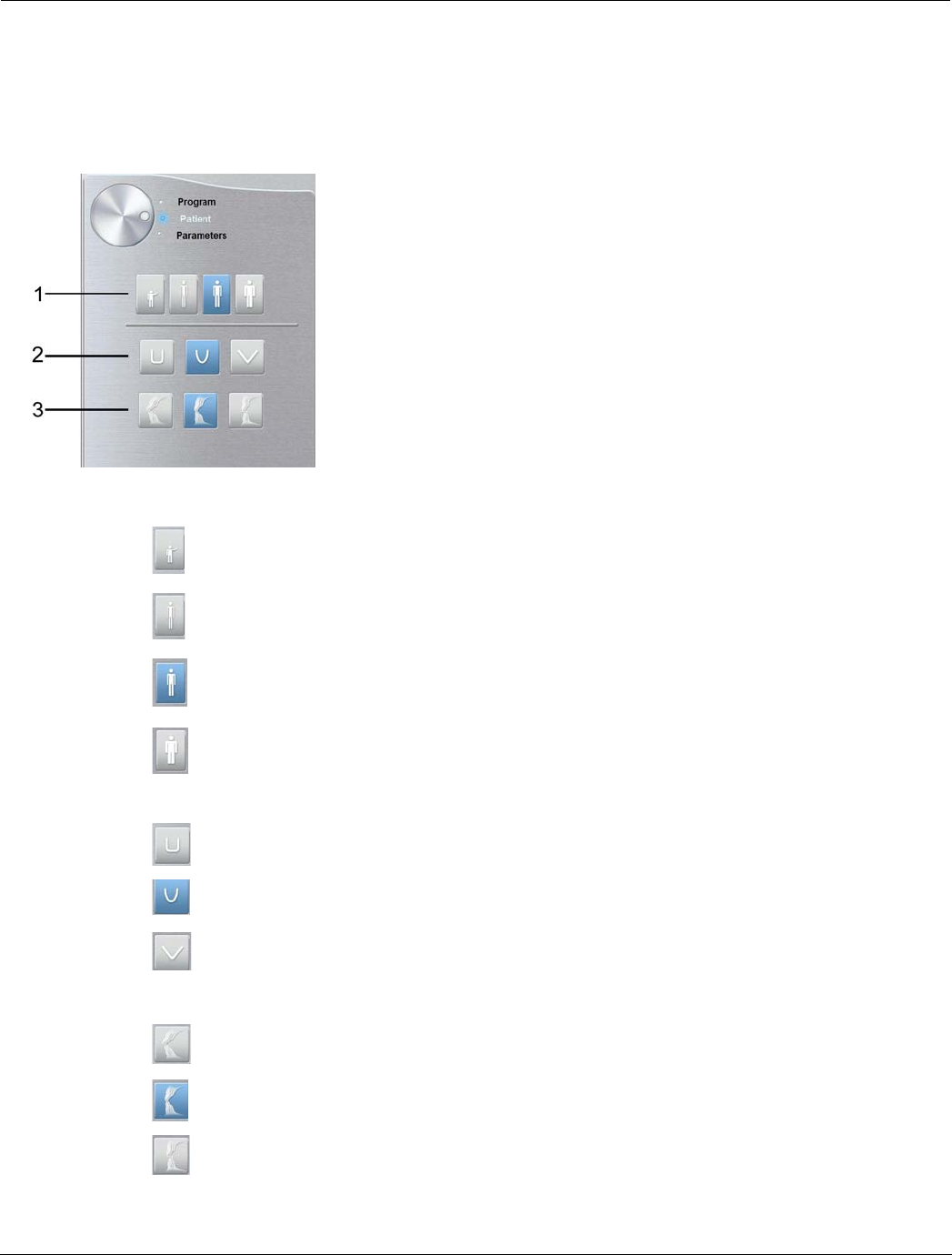

Figure 3–3 Patient Pane

1 Patient type parameters:

Click if the patient is a child.

Click if the patient is small.

Click if the patient is medium.

Click if the patient is large.

2 Patient dental arch morphology:

Click for a square dental arch.

Click for a normal shape dental arch.

Click for a sharp dental arch.

Incisors orientation:

Click for a vestibular orientation.

Click for an axial orientation.

Click for a lingual orientation.
