Acquisition Interface

3–20 IMAGING SOFTWARE OVERVIEW

Parameter Pane

The Parameter pane enables you to choose exposure parameters for the radiological

image acquisition. If the default parameter setting is not adapted to your patient’s type,

you can manually adapt the parameter settings to the patient’s type and save this setting

as the user-defined setting.

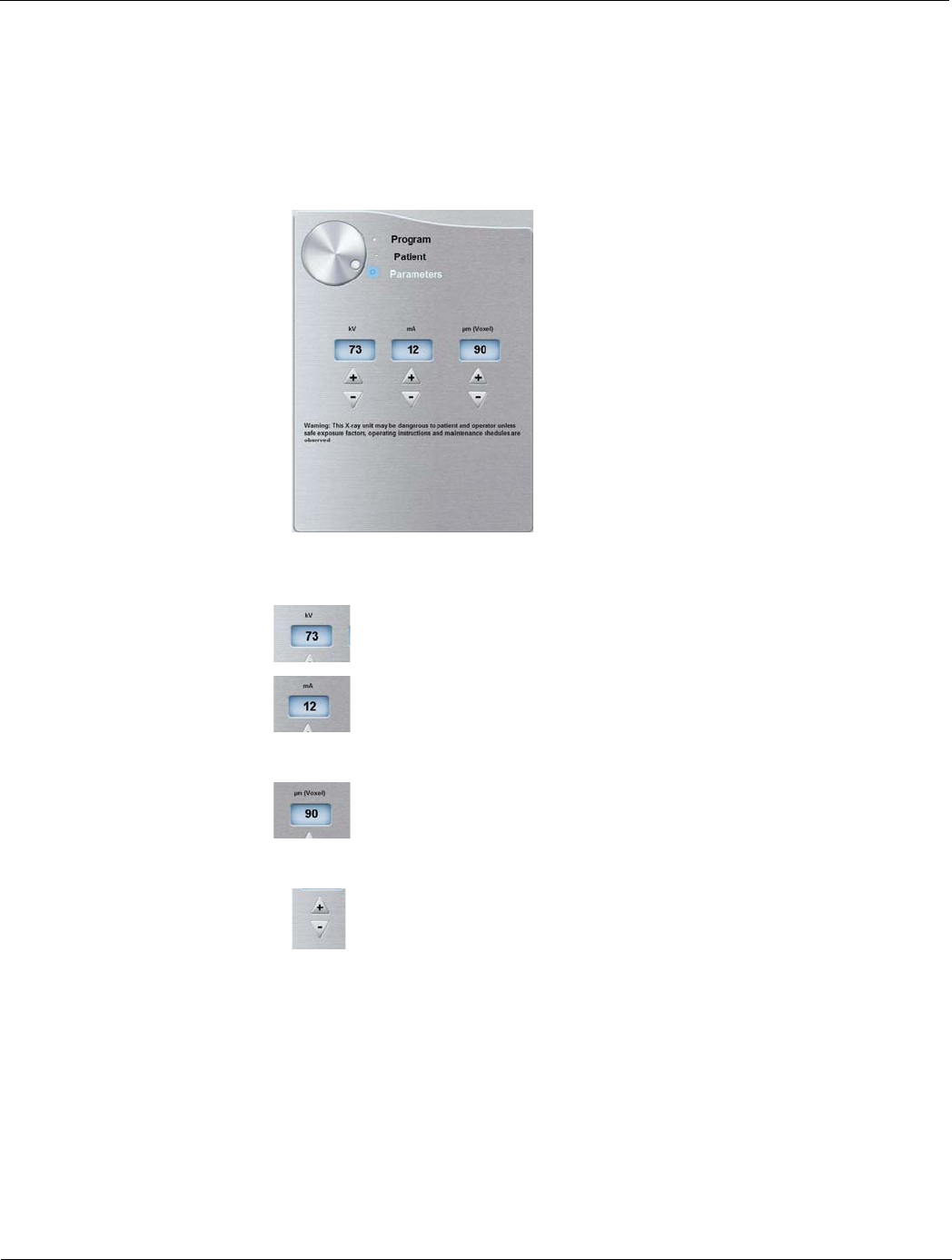

Figure 3–19 Parameter Pane

Exposure settings:

kV: kilovolts

mA: milliamperes

Image resolution options:

µm (Voxel): micrometer. Most exams can be performed using different voxel sizes.

Fine-tuning buttons:

Fine-tune the kV, the mA and the µm (voxel).
