Connections

1. Installation

Connections

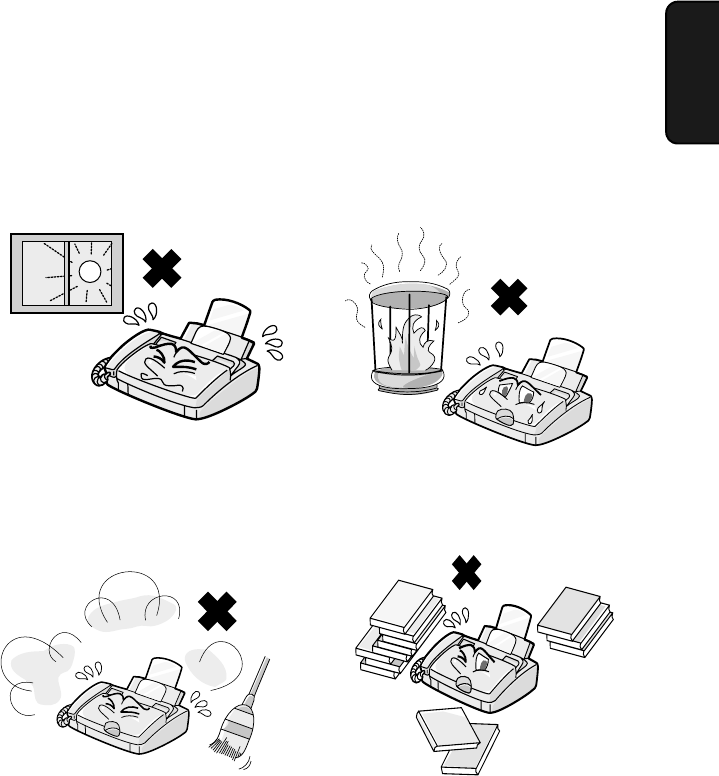

Points to keep in mind when setting up

Do not place the machine in

direct sunlight.

Do not place the machine near

heaters or air conditioners.

Keep dust away from the

machine.

Keep the area around the

machine clear.

About condensation

If the machine is moved from a cold to a warm place, it is possible that

condensation may form on the scanning glass, preventing proper

scanning of documents for transmission. To remove the condensation,

turn on the power and wait approximately two hours before using the

machine.
