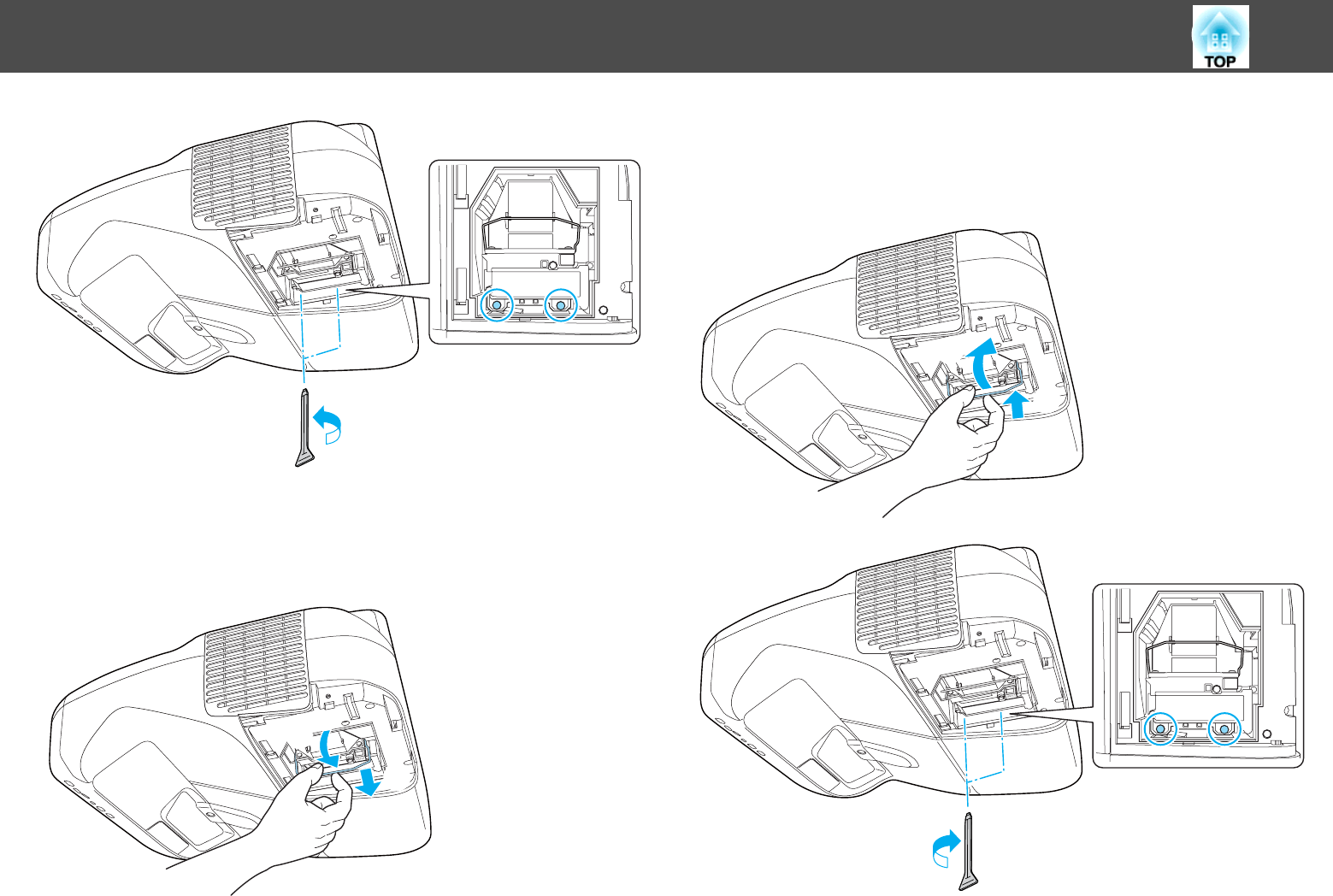

Remove the old lamp by pulling the handle.

If the lamp is cracked, replace it with a new lamp, or contact your

local dealer for further advice.

s Epson Projector Contact List

②

①

Install the new lamp.

Insert the new lamp along the guide rail in the correct direction so

that it fits in place, push in firmly, and then press the handle down.

Tighten the two lamp fixing screws.

②

①

Attach the lamp cover.

Replacing Consumables

141
