AR-651/810 RADF (DOCUMENT FEEDER) 16 - 24

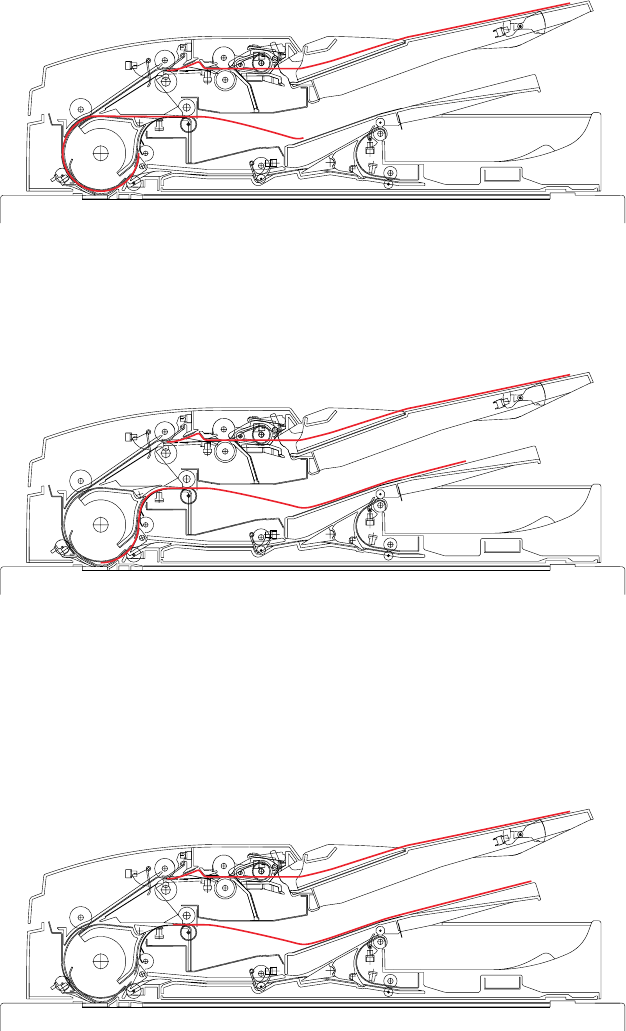

When the leading edge of the original has been transported to the large original exit side and come the

3rd roller, the large original exit motor starts to rotate in reverse .

The SCN-STR turns OFF when the trailing edge of the original has passed the scanning section. At the

same time, both the read and large original exit motors start to accelerate and the disengagement

solenoid turns OFF.

The large original exit motor slows down when the trailing edge of the original has passed the 4th roller

and proceeded a specified distance. After the large original exit sensor has detected the trailing edge of

the original, the read motor stops rotating soon and the large original exit motor stops rotating when the

original has proceeded a specified distance. Then the original is nipped by the large original exit roller.
