IBX-530B-270 Embedded System

Page 73

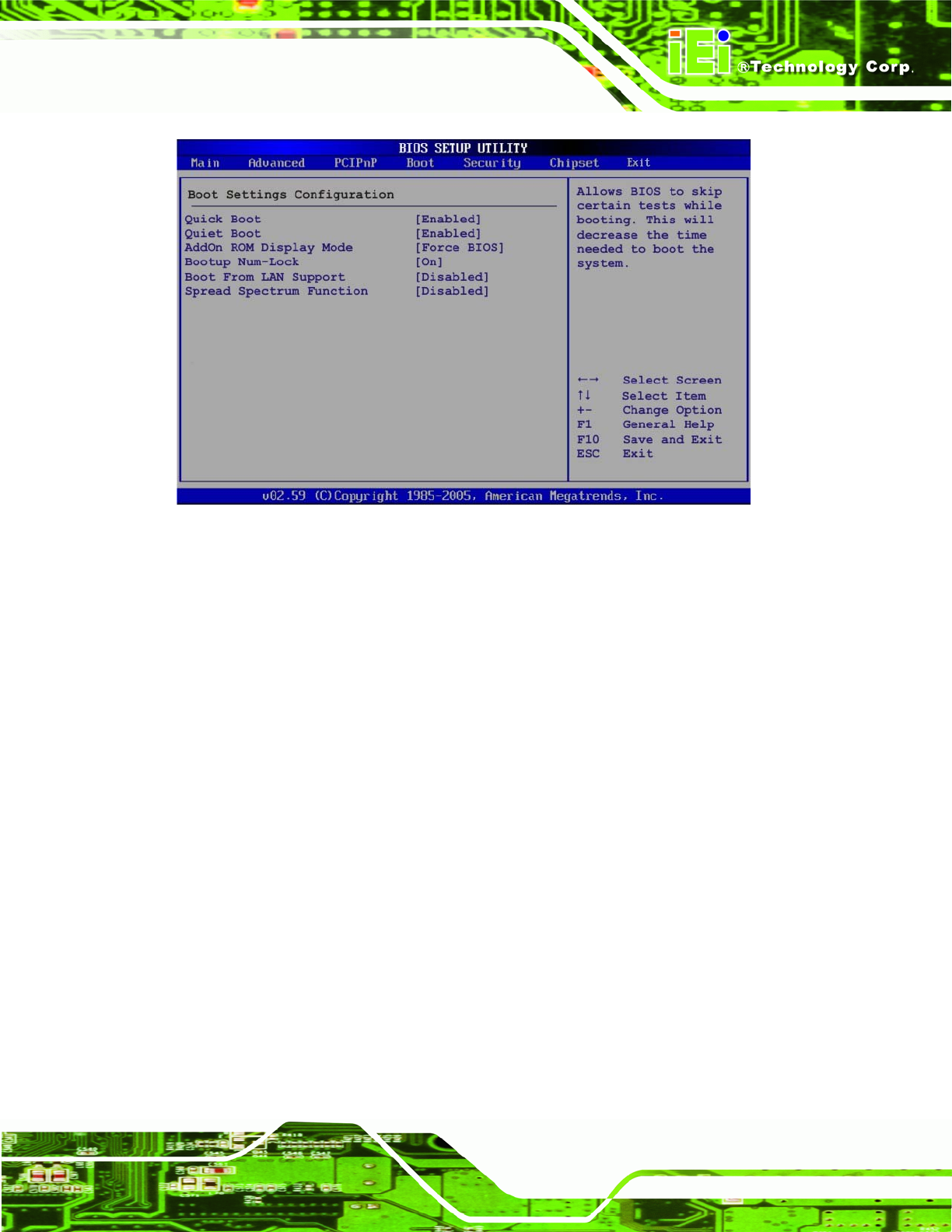

BIOS Menu 15: Boot Settings Configuration

 Quick Boot [Enabled]

Use the Quick Boot BIOS option to make the computer speed up the boot process.



Disabled

No POST procedures are skipped



Enabled DEFAULT

Some POST procedures are skipped to decrease

the system boot time

 Quiet Boot [Enabled]

Use the Quiet Boot BIOS option to select the screen display when the system boots.



Disabled

Normal POST messages displayed



Enabled DEFAULT

OEM Logo displayed instead of POST messages
