Installation manual

ENG

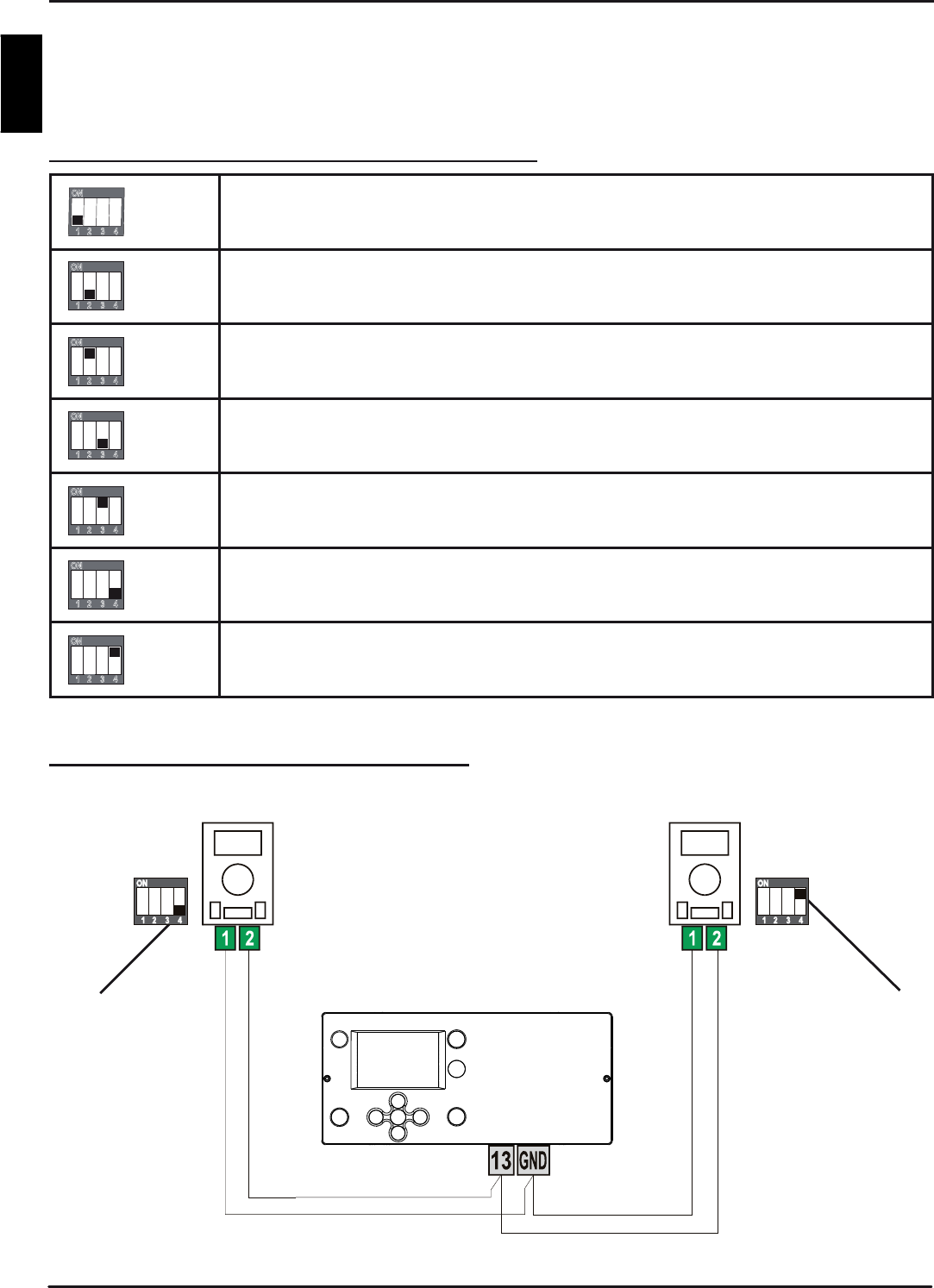

Scheme for connecting room unit DD2+:



The second room unit.

ROOM UNIT DD2+

The KXD controllers enable connection of DD2+ room unit which measures room tempera-

ture and enables the setting of requested day and night temperature, as well as selection

of operation mode. Up to two room units can be connected to a single KXD controller.

Setting of coding switches on room unit DD2+:

1 2 3 4

Required setting.

1 2 3 4

Room unit is controlling circuit 1.

1 2 3 4

Room unit is not controlling circuit 1.

1 2 3 4

Room unit is controlling circuit 2.

1 2 3 4

Room unit is not controlling circuit 2.

1 2 3 4



1 3 4

The second room unit.
