AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-16

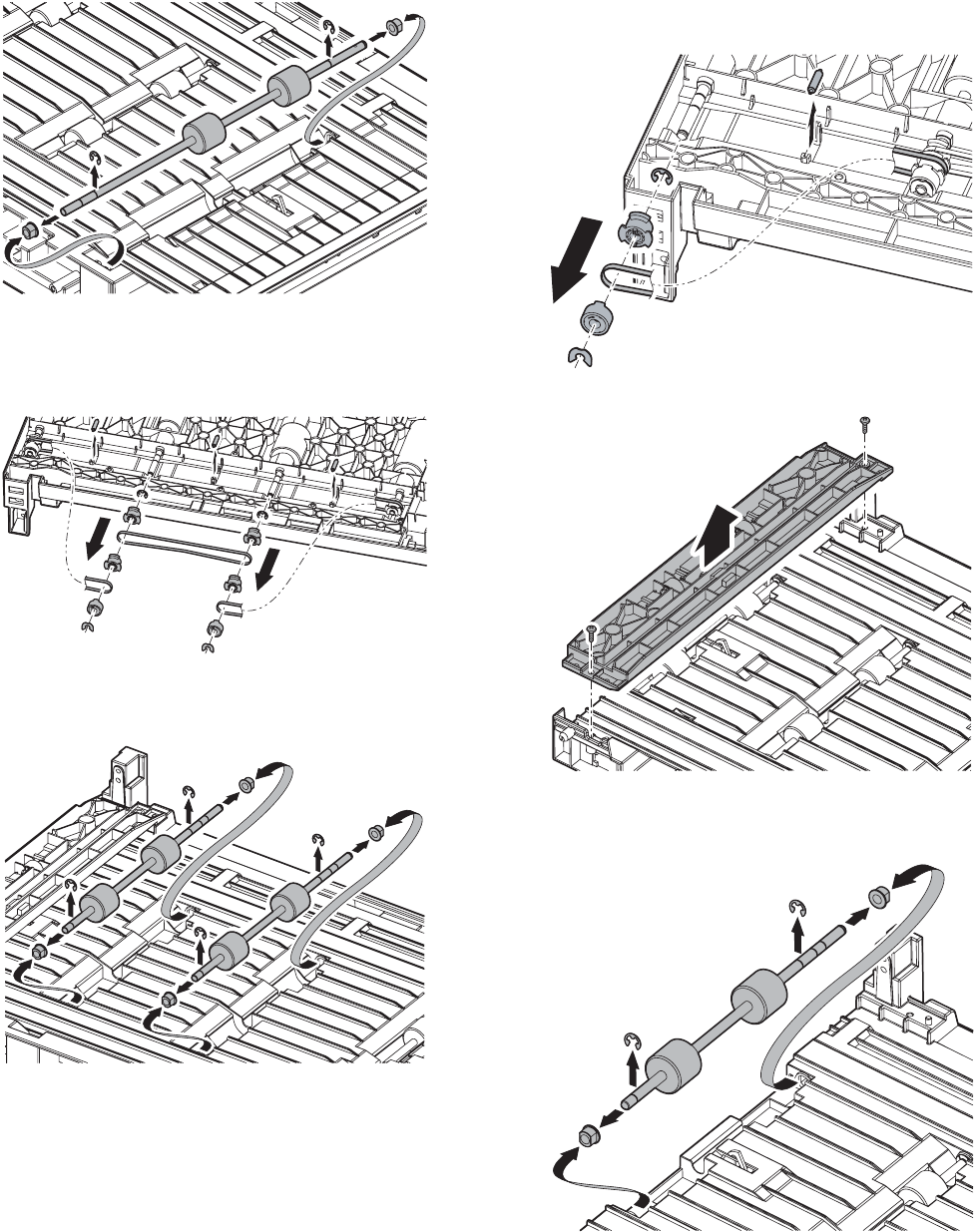

7) Remove the E-ring, and remove the interface transport drive roller

unit. Remove the bearing from the interface transport drive roller.

g. Interface transport medium roller 1, 2

1) Remove the interface transport lower unit.

2) Remove the interface transport earth wire.

3) Remove each part. Remove the manual feed auxiliary roller unit.

4) Remove the E-ring, and remove the interface transport medium roller

unit 1 and 2. Remove the bearing from the interface transport

medium roller 1 and 2.

h. Interface transport medium roller 3

1) Remove the interface transport lower unit.

2) Remove the interface transport earth wire.

3) Remove each part. Remove the manual feed auxiliary roller unit.

4) Remove the screw, and remove the transport paper guide.

5) Remove the E-ring, and remove the interface transport medium roller

unit 3. Remove the bearing from the interface transport medium

roller unit 3.

[05]DISASSEMBLYANDASSEMBLY.fm 16 ページ２００４年４月１９日　月曜日　午後１時３８分
