AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-15

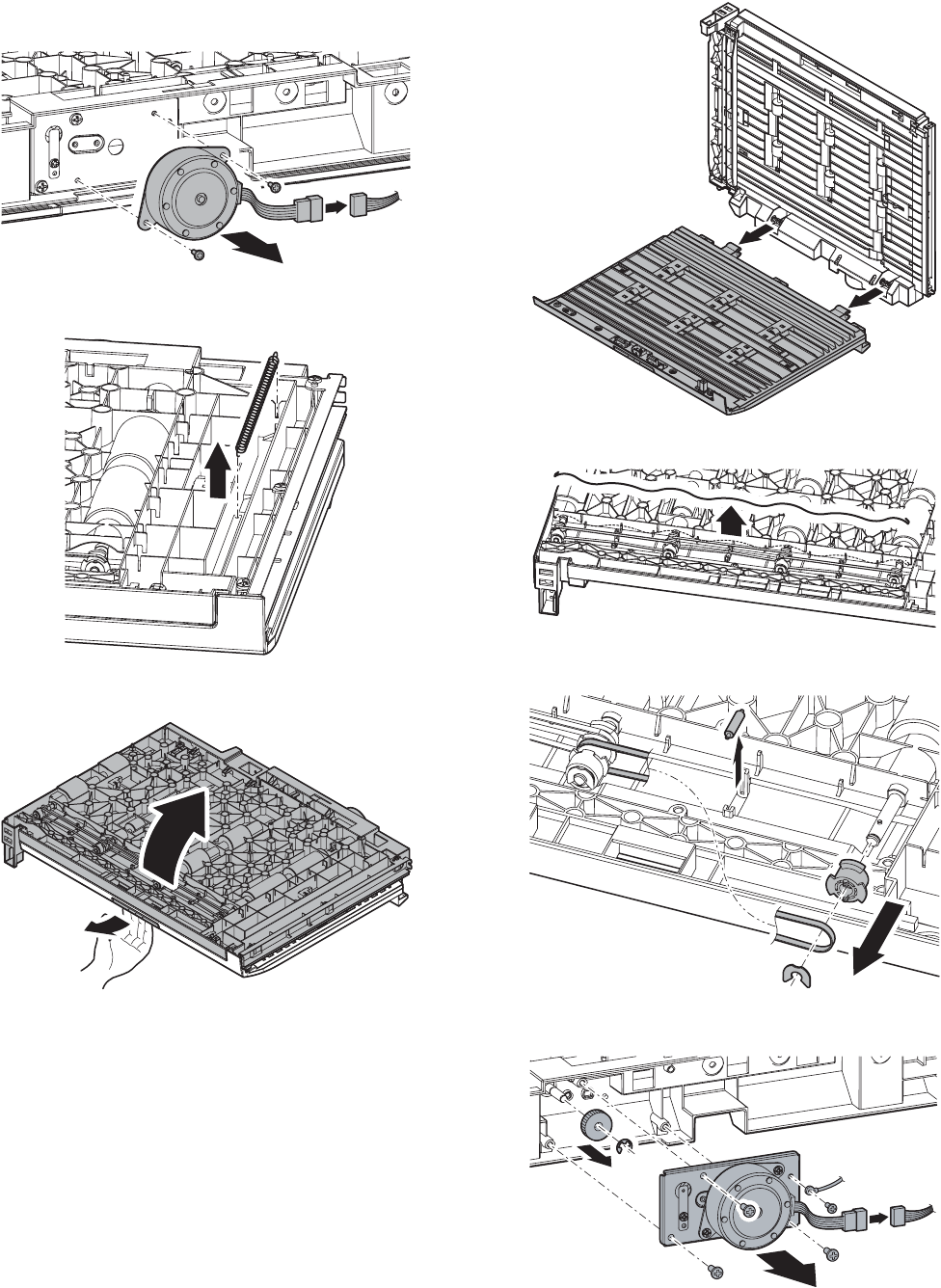

e. Interface transport motor

1) Remove the connector and the screw, and remove the interface

transport motor.

f. Interface transport drive motor

1) Remove the jam release spring.

2) Pull the notch and release the lock, and raise the interface transport

upper unit.

3) Remove the interface transport lower unit.

4) Remove the interface transport earth wire.

5) Remove the E-ring, the belt, and the pulley. Remove the manual feed

auxiliary roller unit.

6) Remove the connector, the earth wire, and the screw. Remove the

interface transport motor unit. Remove the E-ring and the gear.

[05]DISASSEMBLYANDASSEMBLY.fm 15 ページ２００４年４月１９日　月曜日　午後１時３８分
