5-4 User’s Guide

Navigating the Driver

Macintosh Operations

Navigating the Driver

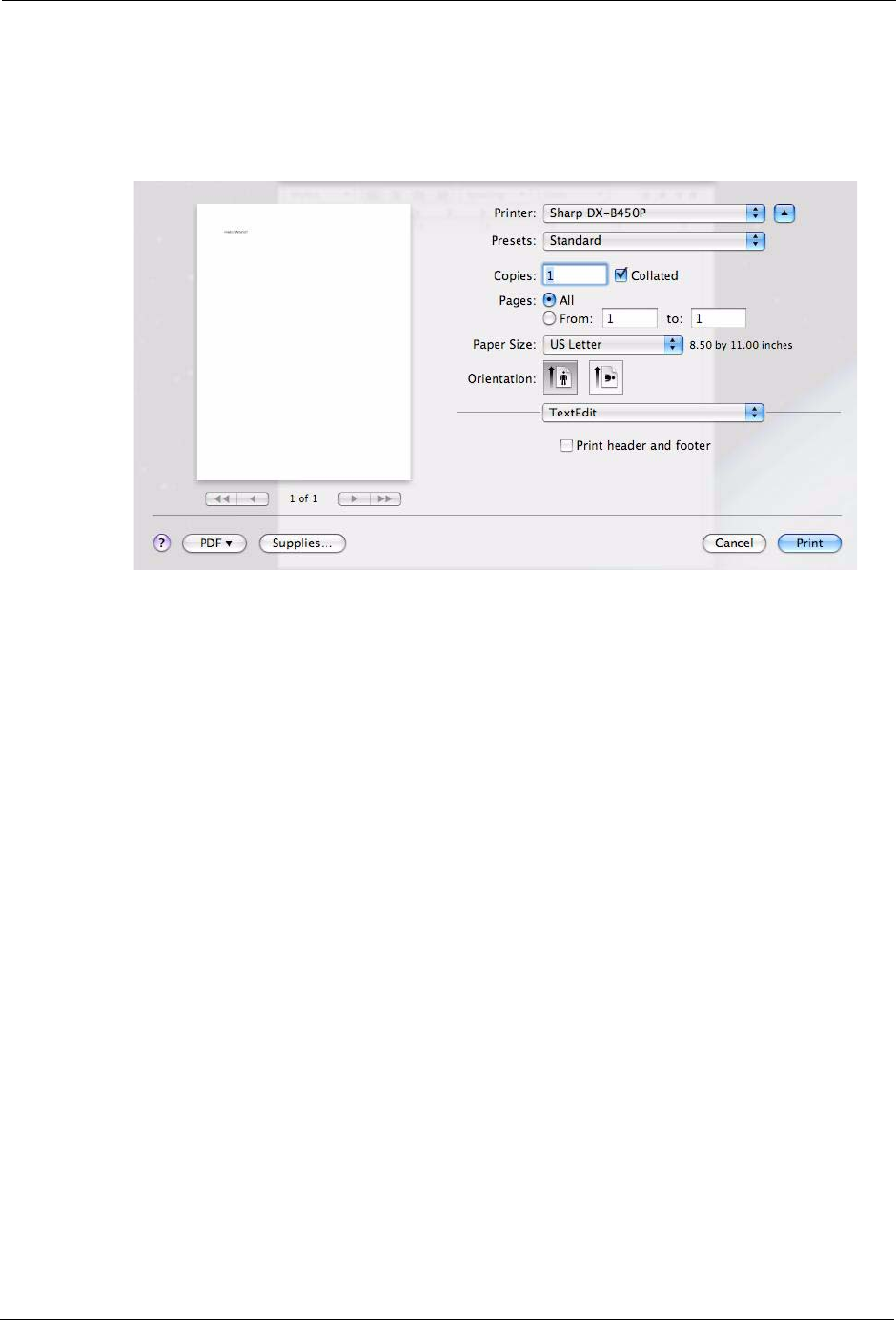

Driver features and presentation may vary by Mac operating system. In general, the driver

provides a group of “always there” option at the top of the driver window and a pulldown of

Printer features available towards the middle of the window.

The following table provides a general overview of available features and navigation
