User’s Guide 8-19

Offset Catch Tray

Accessories

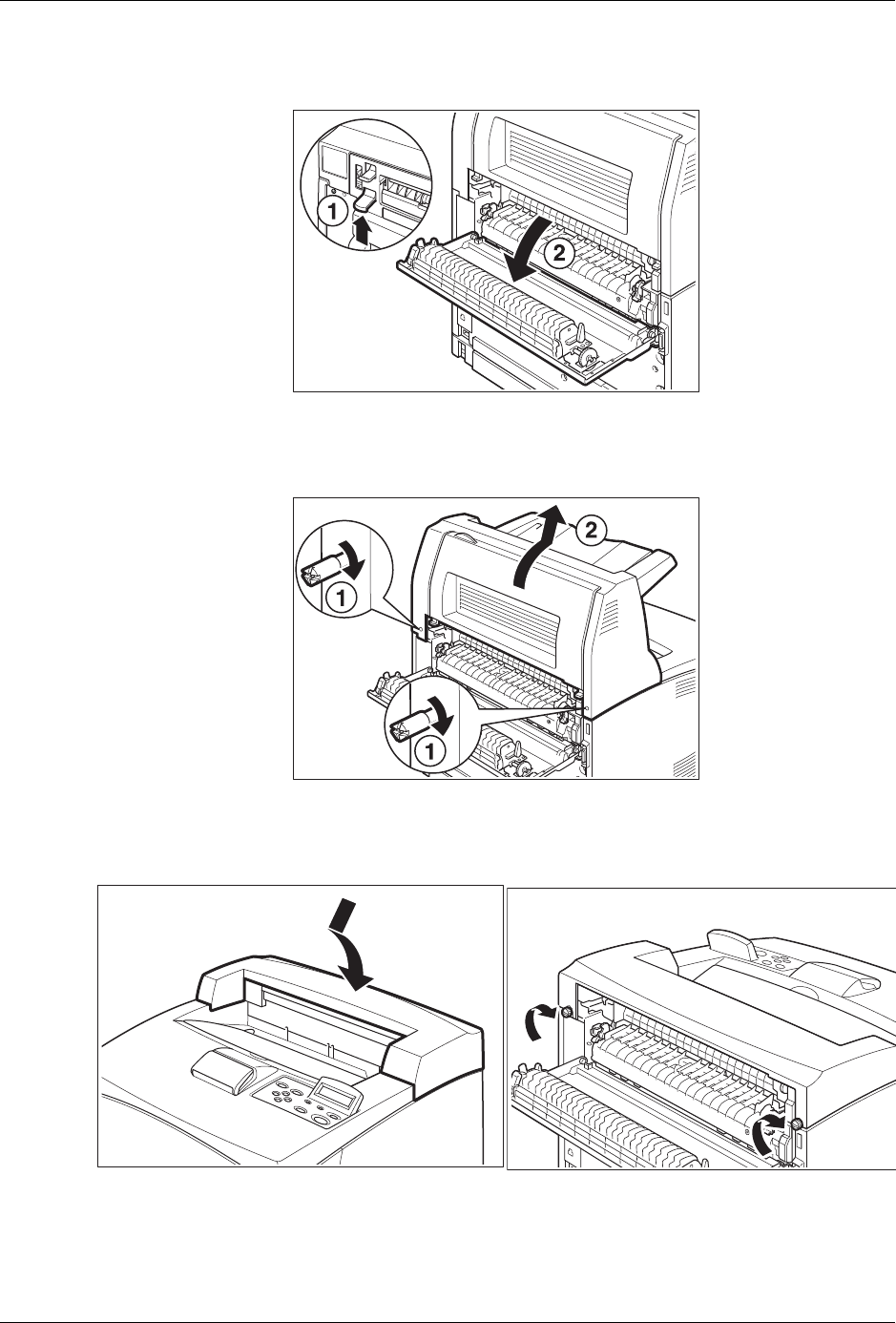

4. Lift up the second lever (1) from the top left corner of the back of the printer to open the

rear cover (2).

5. Remove the screws on both sides of the Offset Catch Tray (1), and while holding up the

Offset Catch Tray, remove the right and left tabs from the holes at the top of the printer

(2).

6. Fasten the right and left thumb screws of the top cover of the paper exit, which was

removed during installation of the Offset Catch Tray, into the holes at the top of the

printer.
