User’s Guide 2-13

Loading Paper

Getting to Know Your Printer

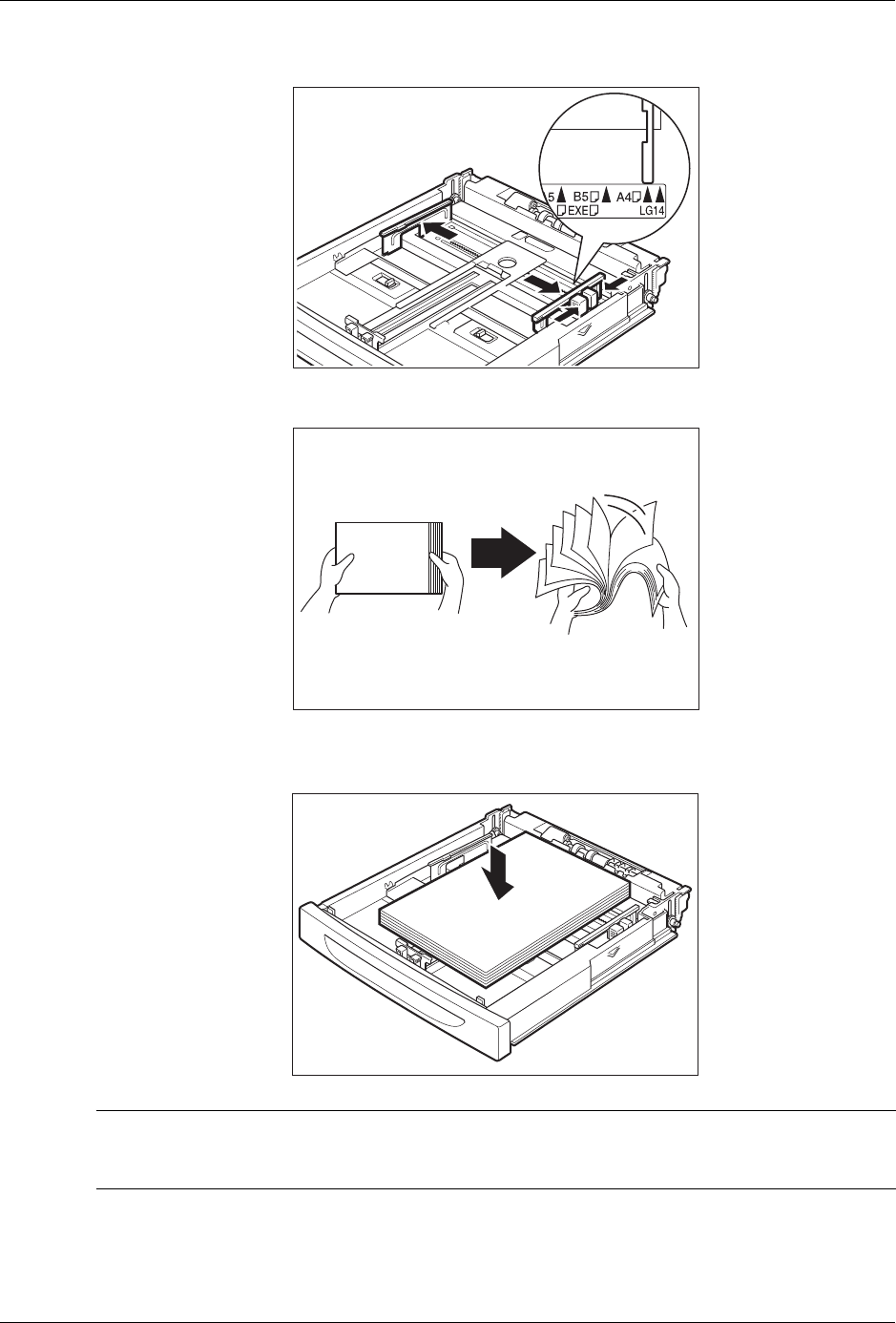

5. Squeeze the right width guide and slide it to the desired paper size.

6. Fan the paper well.

7. Load the paper with the side to be printed facing up and all 4 corners aligned. Make sure

the right width guide is correctly aligned with the paper.

NOTE: Do not load paper exceeding the maximum fill line or the maximum capacity allowed.

Align the right width guide to the paper width. If the right width guide is not in place, the paper will

not be properly fed and may cause a paper jam.
