AR-168N/168L DISASSEMBLY AND ASSEMBLY 8 - 19

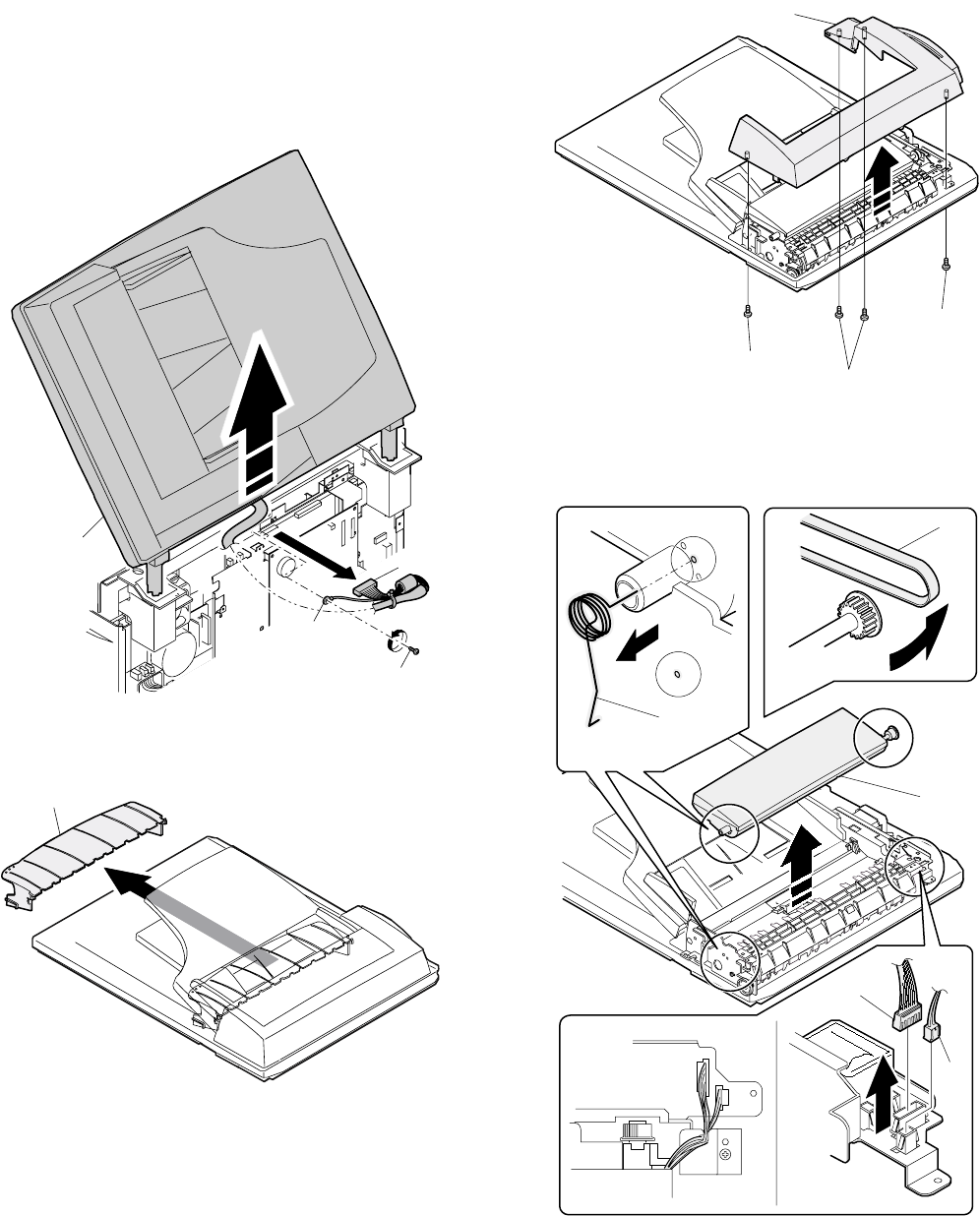

11.RSPF section (RSPF model only)
A. RSPF
(1) Remove the rear cabinet.
1) Remove four screws.
2) Remove the rear cabinet.
(2) Remove the RSPF.
1) Remove the connector and the cable.
2) Remove the RSPF.
B. Intermediate tray
1) Remove the intermediate tray.
C. Upper cover
1) Remove four screws from the bottom of the main body.2)Remove
the upper cover.
D. Pickup unit
1) Remove the belt, the paper feed frame spring, and two harnesses.
2) Remove the pickup unit.
Note: When reassembling, be careful of the hole position for the paper
feed frame spring.
4)
1)
3)
2)
1
1
2
1
1
1
1
2
1
1
08_DISSASEMBLY.fm 19 ページ ２００５年１１月１８日 金曜日 午後５時３３分
