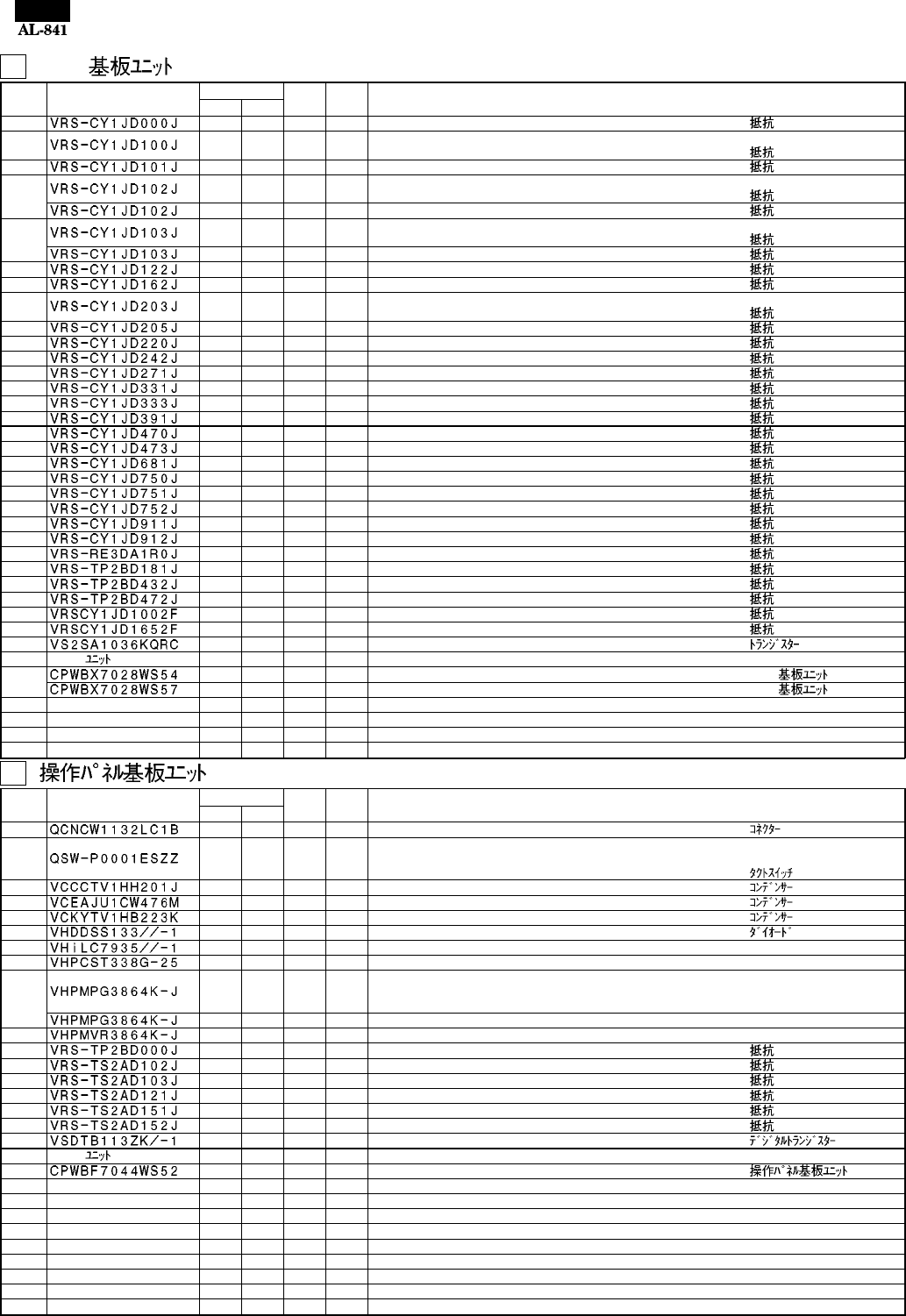

12 MCU (MCU PWB Unit)

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

RANK

DESCRIPTION

Ex. Ja.

63

AA DD C

Resistor (1/16W 0Ω±5%) [R123,129,141,175,209,250]

64 AA DD C

Resistor (1/16W 10Ω±5%)

[R103∼105,143,147,154,159,160,163,189,191,207,218,229]

65 AA DD C

Resistor (1/16W 100Ω±5%) [R134,196,230]

66

AA DD C

Resistor (1/16W 1.0KΩ±5%)

[R109,113,117,118,120,124,131,142,148,151,157,161]

AA DD C

Resistor (1/16W 1.0KΩ±5%) [R203,231,237∼239,242]

67

AA DD C

Resistor (1/16W 10KΩ±5%)

[R106,107,127,128,149,152,158,162,193,204,222,224]

AA DD C

Resistor (1/16W 10KΩ±5%) [R225,243,251∼258]

68 AA DD C

Resistor (1/16W 1.2KΩ±5%) [R200]

69 AA DD C

Resistor (1/16W 1.6KΩ±5%) [R111,112,119,201]

70 AA DD C

Resistor (1/16W 20KΩ±5%)

[R108,132,140,144∼146,211,240,241]

71 AA DD C

Resistor (1/16W 2.0MΩ±5%) [R195,221]

72 AA DD C

Resistor (1/16W 22Ω±5%) [R199]

73 AA DD C

Resistor (1/16W 2.4KΩ±5%) [R219,220]

74 AA DD C

Resistor (1/16W 270Ω±5%) [R234]

75 AA DD C

Resistor (1/16W 330Ω±5%) [R139]

76 AA DD C

Resistor (1/16W 33KΩ±5%) [R115]

77 AA DD C

Resistor (1/16W 390Ω±5%) [R226]

78 AA DD C

Resistor (1/16W 47Ω±5%) [R174]

79 AA DD C

Resistor (1/16W 47KΩ±5%) [R188,205,227]

80 AA DD C

Resistor (1/16W 680Ω±5%) [R232]

81 AA DD C

Resistor (1/16W 75Ω±5%) [R213]

82 AA DD C

Resistor (1/16W 750Ω±5%) [R212]

83 AA DD C

Resistor (1/16W 7.5KΩ±5%) [R202]

84 AA DD C

Resistor (1/16W 910Ω±5%) [R133]

85 AA DD C

Resistor (1/16W 9.1KΩ±5%) [R114]

86 AB DD C

Resistor (2W 1.0Ω±5%) [R1,2]

87 AA DD C

Resistor (1/8W 180Ω±5%) [R126]

88 AA DD C

Resistor (1/8W 4.3KΩ±5%) [R125]

89 AA DD C

Resistor (1/8W 4.7KΩ±5%) [R192]

90 AA DD C

Resistor (1/16W 10KΩ±1%) [R208,216]

91 AA DD C

Resistor (1/16W 16.5KΩ±1%) [R206]

92 AB DD B

Transistor (2SA1036KQRC) [Q101]

(Unit)

901

CA TV N E

MCU PWB unit (Japan) MCU

CA TV N E

MCU PWB unit (USA) MCU

13 (Operation Panel PWB Unit)

NO. PARTS CODE

PRICE RANK

NEW

MARK

PART

RANK

DESCRIPTION

Ex. Ja.

1

AC DJ C

Connector (12pin) [CN901]

2 AC DJ N B

Tact swtch (SKQNAB010)

[OLK,PSW,CLK,1UPK,10UPK,MAGK,ZUPK,

ZDWK,CRSK,EXUDK,EXMODK]

3 AA DD C

Capacitor (50WV 200PF) [C904∼906]

4 AB DD C

Capacitor (16WV 47µF) [C902]

5 AA DD C

Capacitor (50WV 0.022µF) [C901,903]

6 AA DD B

Diode (DSS133) [D901∼904]

7 AN EQ B

IC (LC7935) [IC901] IC

8

AP EQ B

LED (CST338G-25) [LEDM] LED

9

AC DJ B

LED (MPG3864K)

[PML,ONLL,RPL,ZPL,2ENR,1ENR,NOR,1RE,

2RE,3RE,EXD,EXN,EXL,AE,ME,PE] LED

AC DJ B

LED (MPG3864K) [3RE,EXD,EXN,EXL,AE,ME,PE] LED

10

AC DJ B

LED (MVR3864K) [JPL,DPL,TPL] LED

11

AA DD C

Resistor (1/8W 0Ω±5%) [J900,901]

12 AA DD C

Resistor (1/10W 1.0KΩ±5%) [R935]

13 AA DD C

Resistor (1/10W 10KΩ±5%) [R938,962]

14 AA DD C

Resistor (1/10W 120Ω±5%) [R902∼918]

15 AA DD C

Resistor (1/10W 150Ω±5%) [R939∼941]

16 AA DD C

Resistor (1/10W 1.5KΩ±5%) [R936,937]

17 AD DJ B

Digital transistor (DTB113ZK) [Q901∼903]

(Unit)

901

BV RB N E

Operation PWB unit
