AL-1551 DISASSEMBLY AND ASSEMBLY 8-14

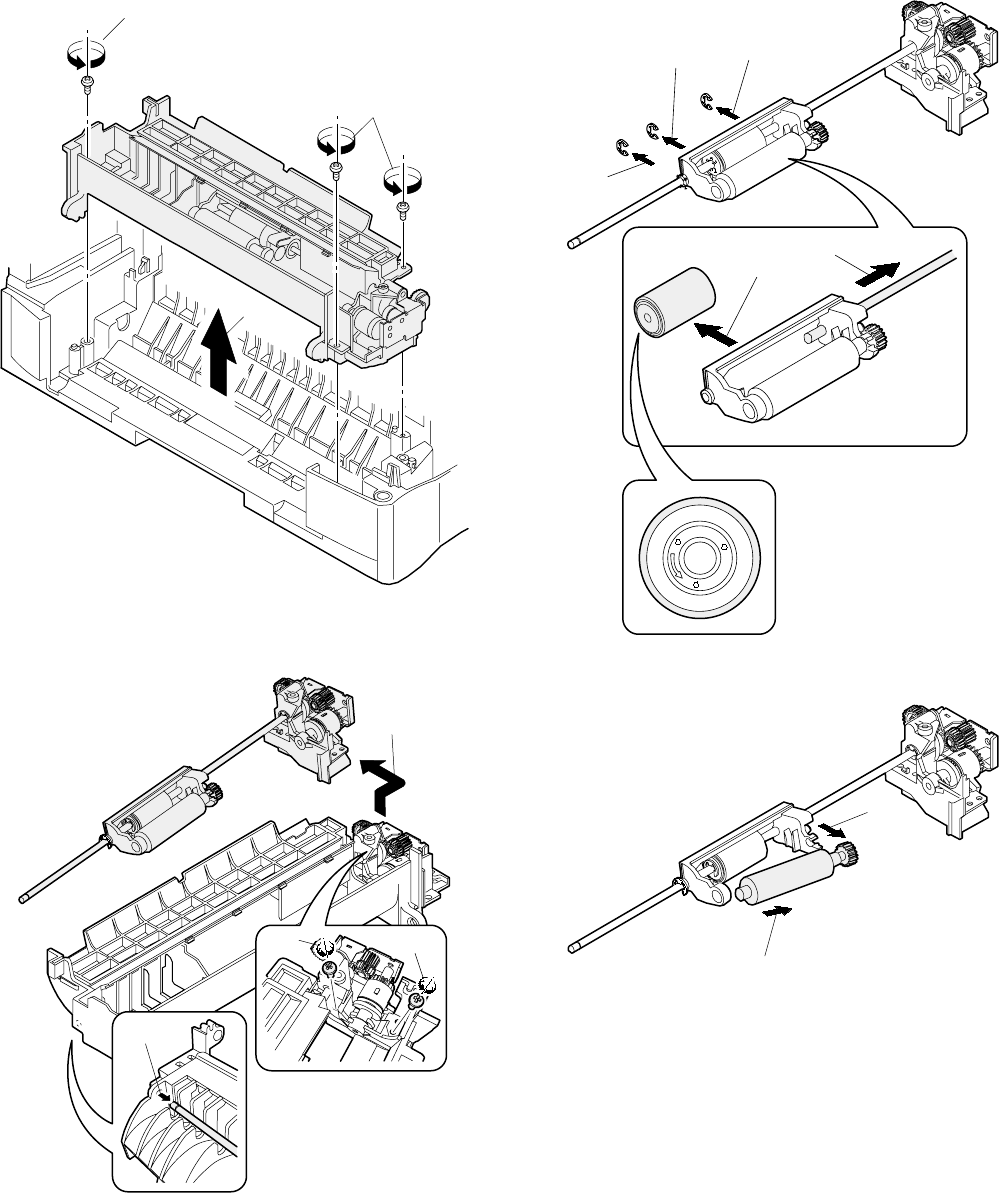

3) Remove three screws and remove the multi paper feed upper frame.

4) Remove two screws and remove the multi feed bracket unit from the

multi paper feed upper frame.

5) Remove three E-rings and remove the manual paper feed roller B9.

6) Remove the pick-up roller.
