AL-1551 DISASSEMBLY AND ASSEMBLY 8-9

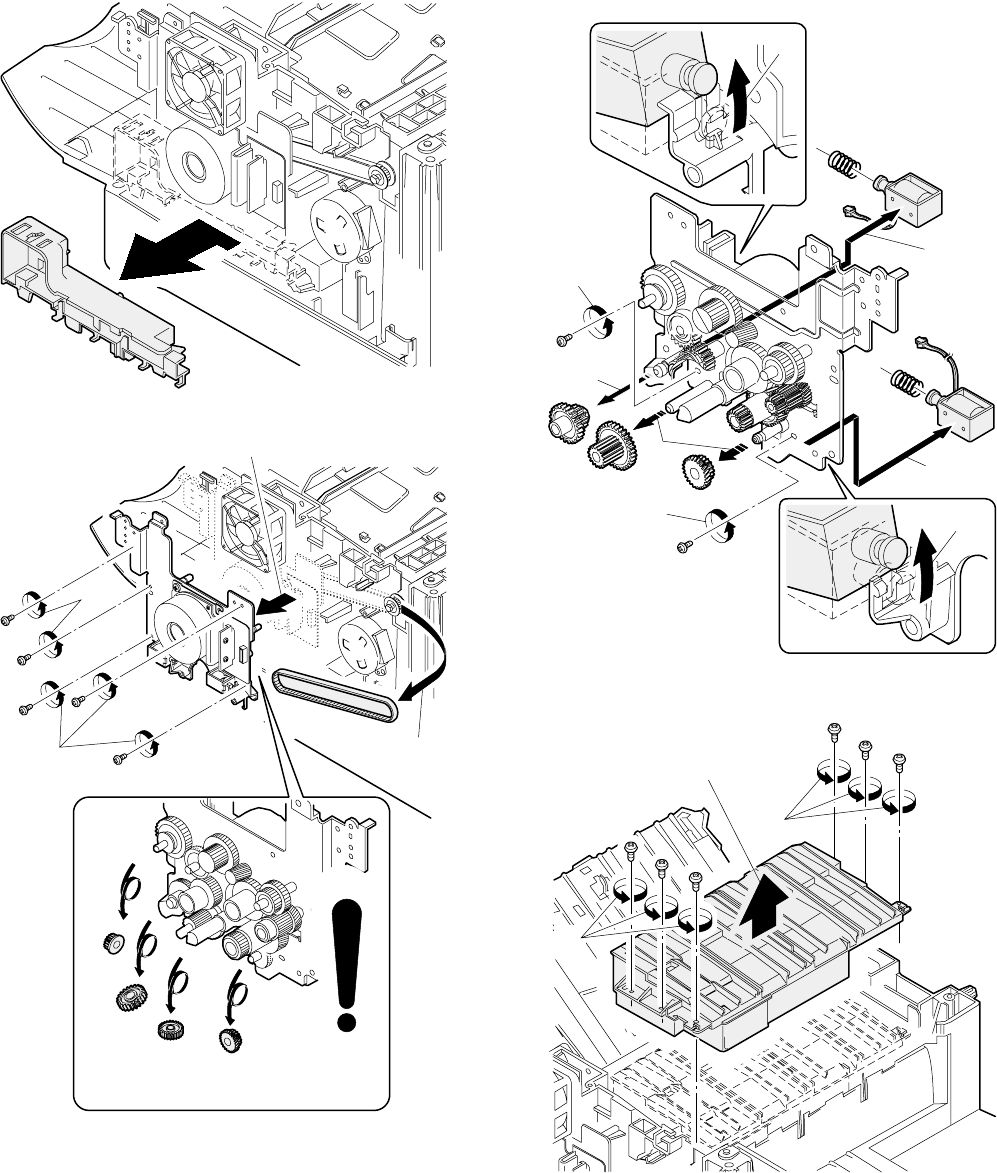

9) Remove the harness guide.

10) Remove five screws and remove the main drive plate and the belt.

11) Remove the parts as shown below, and remove the pressure release

solenoid and the paper feed solenoid.

12) Remove six screws and remove the LSU unit.

1)

3)

2)

1)

CAUTION:Attach the gears securely

3)

3)

1)

1)

2)

2)

4)

4)

1)

1)

2)
