Connecting Multiple Monitors

Digital signal (DVI) cable (commercially available)

To PC digital RGB

output terminal

shows the

signal flow.

INOUT

DVI

PC digital RGB

output terminal

PC digital RGB

input terminal

PC digital RGB

input terminal

Multiple monitors (4 units max.) can be connected in a daisy chain using the provided PC digital RGB input

terminal and PC digital RGB output terminal.

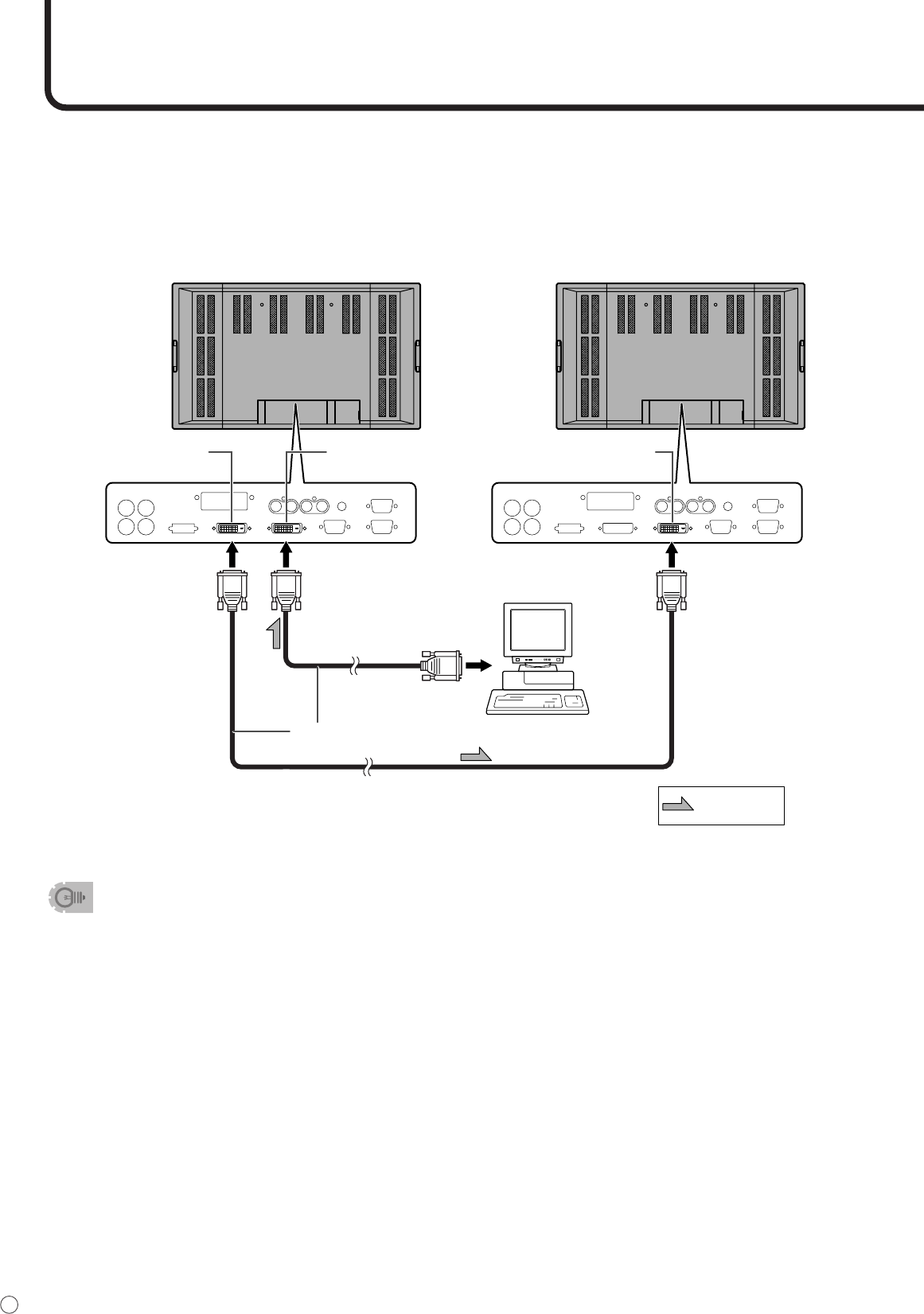

Connection example

▼ Second monitor

▼ First monitor

• Multiple monitors cannot be connected in a daisy chain for audio. Connect the external audio amplifier

(commercially available) to the audio output terminals.

• The length of the digital signal (DVI) cables or surrounding environment may affect the image quality.
