14

E

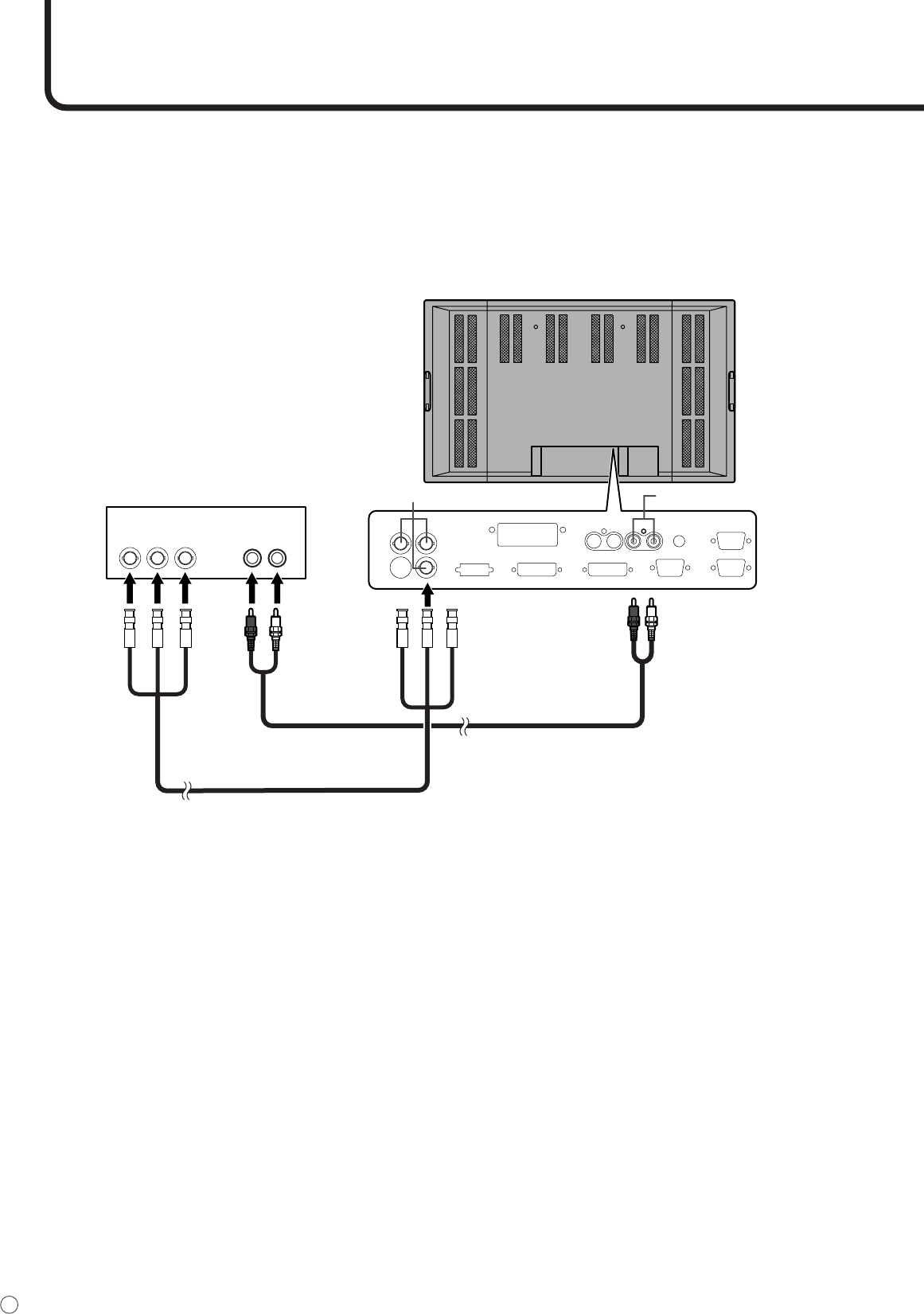

Connection with AV equipment (Input mode: COMPONENT)

• Connect to equipment that has a component video output terminal using a component (BNC) cable

(commercially available).

• Connect with audio output terminals using an audio (RCA) cable (commercially available).

• Select the input mode “COMPONENT” for this connection. (See page 22.)

▼ Rear view

Output terminals on

connected equipment

Component

video

Audio

Right Left

(Red:

Right)

(White:

Left)

(Red: Right) (White: Left)

Audio (RCA) cable

(commercially available)

Component (BNC) cable

(commercially available)

(Y) (Cb/

Pb)

(Cr/

Pr)

(Y) (Cb/

Pb)

(Cr/

Pr)

Component video input terminal Audio input terminals

Connecting Peripheral Equipment (Continued)
