Modules
Setting Up SATA RAID or AHCI Mode 7 - 7
7
16. Go to RAID Level: and press <Enter>.
17. Choose the RAID Level required (see Table 7 - 1, on page 7 - 3 for details) and
press <Enter>.
• RAID0 (Stripe)
• RAID1 (Mirror)
• Recovery
18. Go to any of the disks listed under Select Disks: and select a disk name and
press <Enter>.
19. Move the cursor down (use the arrow keys) onto to X (o select the disk required
and press <Enter>.
• If you have selected a Recovery level RAID then you need to select one disk to
be Master disk (M) and one disk to be the Recovery disk (R)

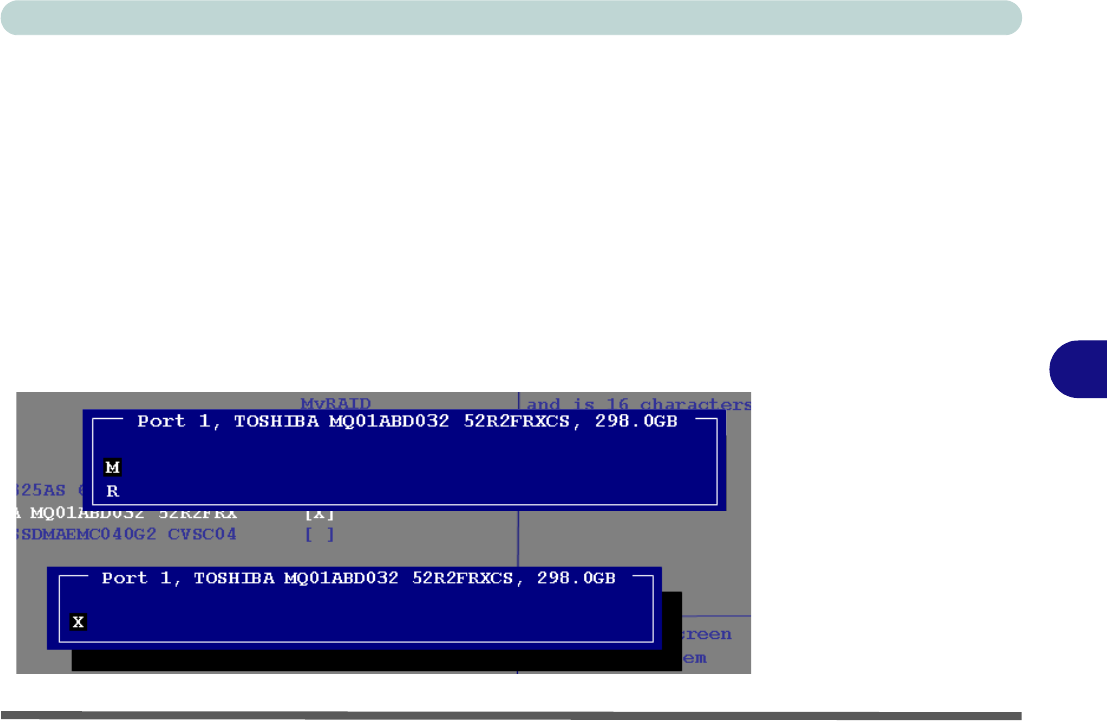

Figure 7 - 3
Select Disks
(Advanced > Intel(R)
Rapid Storage
Technology)
For Recovery
For Stripe or Mirror
