MISFEED REMOVAL

COPIER TROUBLE?

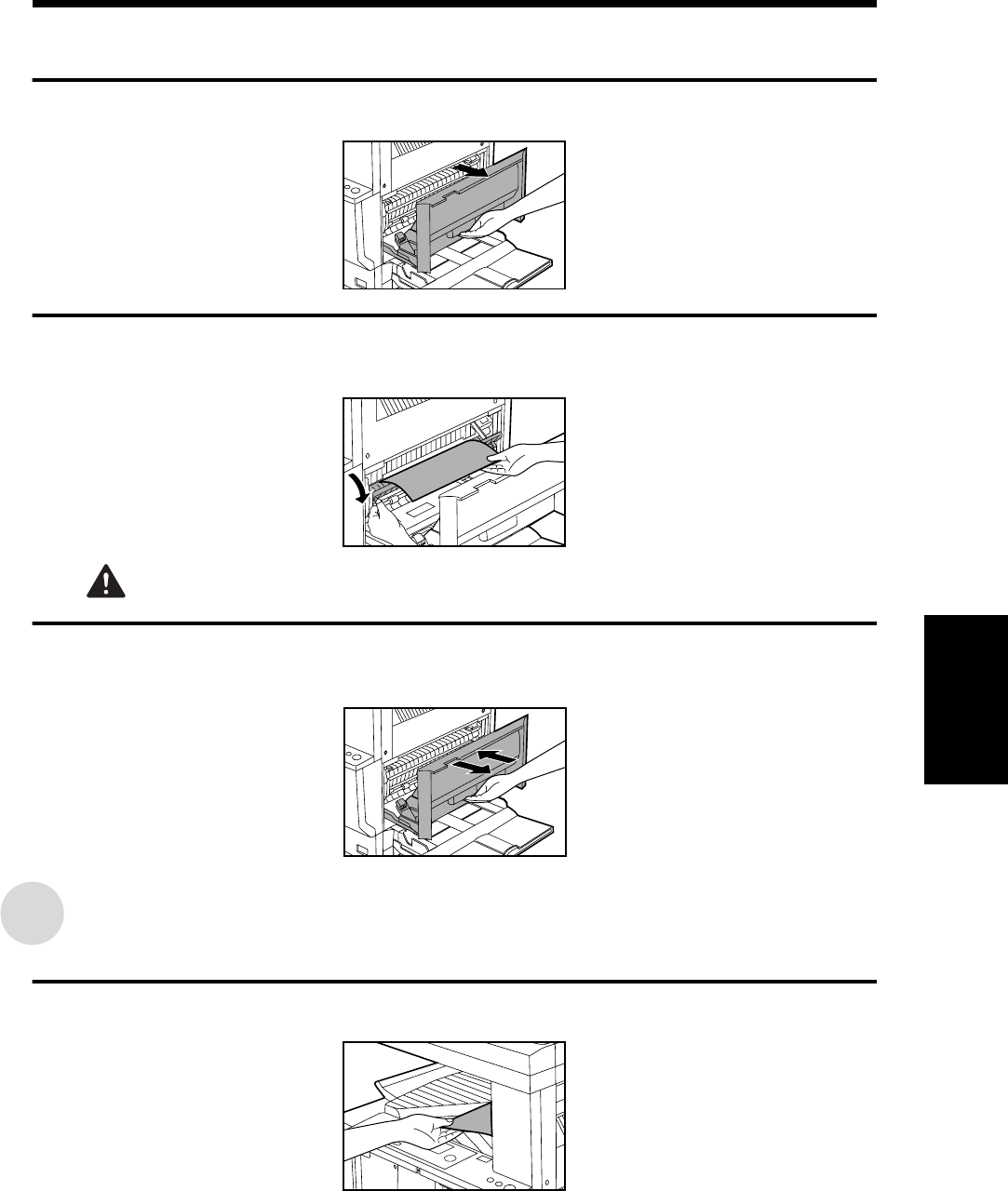

C. Misfeed in the transport area

Open the bypass tray and the side cover.

Use the green tabs on either side of the paper guide to rotate the guide

open and remove the misfed paper

WARNING:

The fusing unit is hot. Take care in removing paper.

Close the side cover.

●

Confirm that the misfeed display has been cleared.

Misfeed in the center tray

Remove the paper by pulling it into the center tray.
