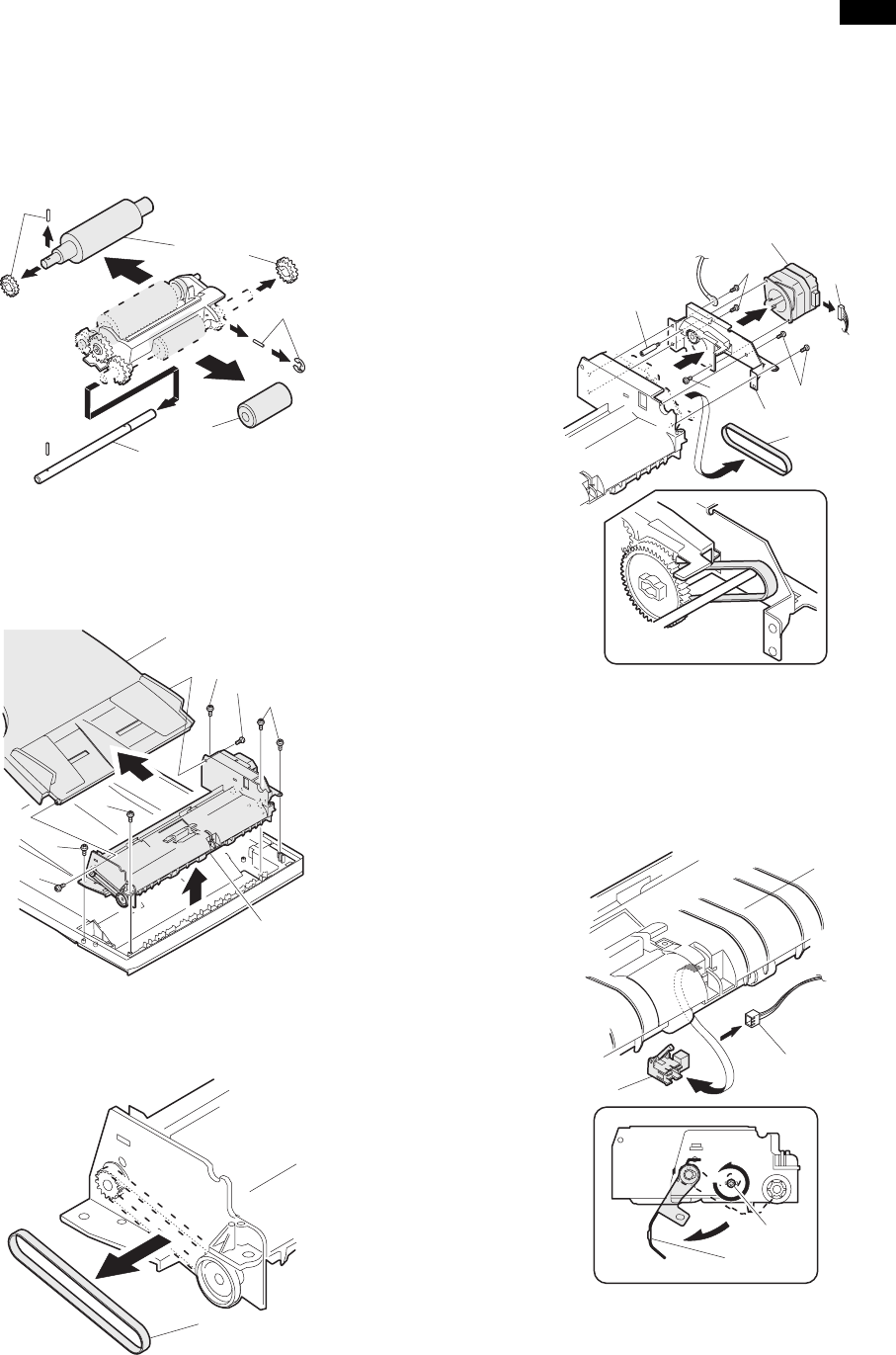

When installing the takeup roller, hang the projection of the takeup

roller unit on the solenoid arm.

1) Remove the parts.

2) Remove the manual paper feed roller.

3) Remove the pickup roller.

4) Remove the parts.

Transport unit removal

1) Remove two screws.

2) Remove the document tray unit.

3) Remove five screws.

4) Remove the transport unit.

E. Belt

1) Remove the belt.

F. SPF motor

1) Remove the harness.

2) Remove four screws.

3) Remove the drive unit.

4) Remove the belt.

5) Remove two screws.

6) Remove the SPF motor.

G. Paper entry sensor

1) Loosen the screw.

2) Open the paper exit PG.

3) Remove the paper entry sensor.

4) Remove the harness.

AR-SP3

3 – 4
