7-18

CHAPTER7

OPTIONAL EQUIPMENT

Finisher (AR-FN1N)

FINISHER (AR-FN1N)

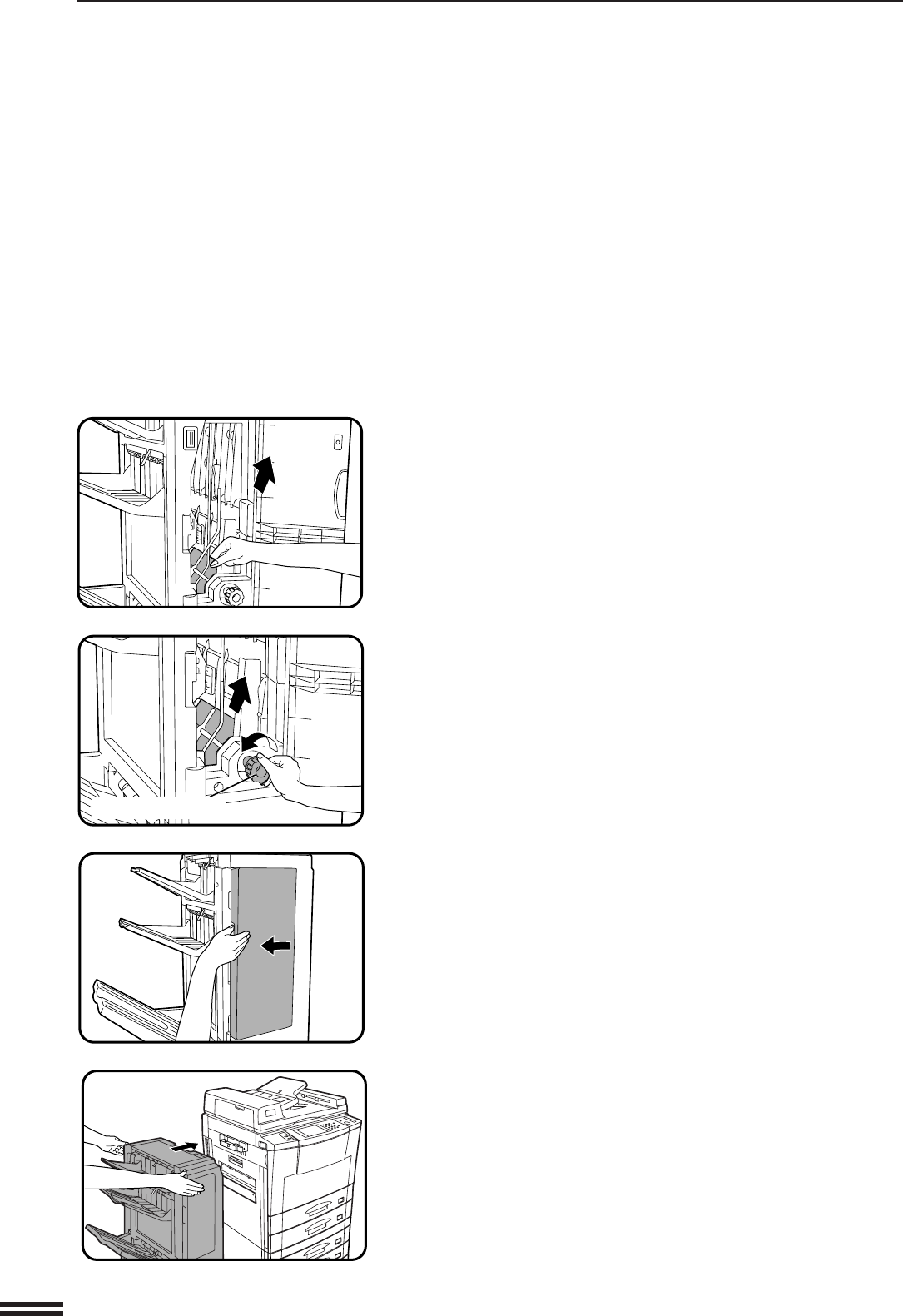

Remove the misfed paper.

●

Remove the misfed paper from the paper transport area.

●

If the misfed paper is not seen in the paper transport area, turn

the roller rotating knob to feed the paper.

Close the paper transport area cover.

Push the finisher toward the copier and latch it in place.

●

Confirm that the misfeed display is cleared.

Roller rotating knob
