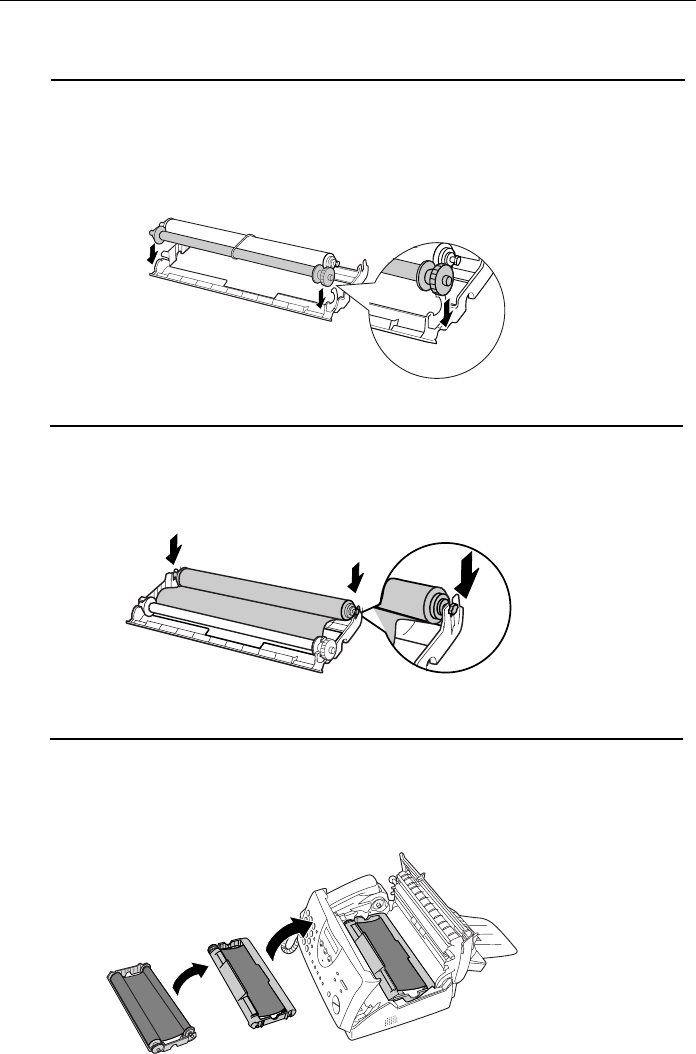

Insert the large gear into the large holder on the imaging film

cartridge (make sure it clicks into place), and then insert the small

gear on the other end of the spool into its holder.

Cut the band that holds the two spools together. Unroll the film

slightly and insert the small gears into their holders.

Turn the cartridge over, grasp the handle, and insert the cartridge

into the print compartment.

Loading the Imaging Film

1 2 ... 17 18 19 20 21 22 23 24 25 26 27 ... 151 152

UX-460 FACSIMILE 1
ENERGY STAR 2
Introduction 3
Automatic feeding: 4
Manual feeding: 4
Important safety information 5
Table of Contents 7
Installation 9
A Look at the Operation Panel 10
1. Installation 11
Connections 13
Power cord 15
Telephone line cord 16
Extension phone (optional) 18
Loading the Imaging Film 19
Loading Printing Paper 24
Press these keys: 27
The display will show: 27
Setting the Date and Time 30
Daylight Saving Time 32
Selecting the Reception Mode 33
Volume Adjustment 34
Using the 36
Answering Machine 36
Recording an Outgoing Message 38
2. Answering 39
Machine 39
PLAY/SKIP 40
Erasing received messages 41
Using the REC/MEMO key 41
Setting ICM time 43
Fax reception on TAD failure 44
OGM only mode 46
Transfer Function 47
5 5 215 43 48
T.A.D. SETTINGS 49
TRANSFER FUNC 49
Override Ringing 50
Remote Operations 52
Toll Saver 53
Retrieving your messages 54
Other remote operations 57
Recording a "Memo" 59
Documents 61
Other restrictions 62
Loading the Document 63
Resolution and Contrast 65
3. Sending 67
Using the REDIAL key 68
Rapid keys 69
SPEED DIAL key 69
Step 3 or 71
Rapid Key Dialing 73
Speed Dialing 74
Direct Keypad Dialing 75
Using the HOLD/SEARCH key 76
Automatic redialing 77
Receiving 78
Using TEL Mode 79
Receiving Documents 83
COPY/HELP 84
5. Making 85
6. Making 87
Phone Calls 87
Chain Dialing 88
Making Telephone Calls 89
How Caller ID operates 91
Display messages 92
Viewing the Caller ID list 92
Priority Call 93
Blocking voice calls 94
RECEPTION 96
MODE 96
Broadcasting 97
FUNCTION 100
(Example) 101
Cover Sheet 101
Batch Page Numbering 102
7. Special 103
Functions 103
START/MEMORY 105
Sending Documents From Memory 106
RESOLUTION 106
01 02 03 107
Requesting transmission 108
Timer Operations 111
Settings 113
01 to 15 114
00 to 10 114
• Initial setting: 5 117
• Initial setting: 1 117
• Initial setting: 2 117
8. Option 117
Printing 120
Reports and Lists 120
RECEIVER 121
9. Printing Lists 121
Timer List 122
Telephone Number List 122
Passcode List 123
Option Setting List 123
Anti Junk Number List 124
Caller ID List 124
TAD Program List 125
Message List 125
Print Setup List 126
Transaction Report 126
Maintenance 127
Scanning glass and rollers 130
The housing 130
Troubleshooting 131
Distinctive Ring 133
Fax print head 133
Problems and Solutions 134
General problems 135
Messages and Signals 136
Display Messages 137
Audible signals 138
Clearing Paper Jams 139
Ordering parts 142
FCC Regulatory Information 143
Section 3. Ingredients 144
REMOTE OPERATION CARD 149
1-800-BE SHARP 151
SHARP ELECTRONICS CORPORATION 151
