1.5 <

Introduction>

Selecting a location

Select a level, stable place with adequate space for air circulation. Allow

extra space for opening covers and trays.

The area should be well-ventilated and away from direct sunlight or

sources of heat, cold, and humidity. Do not set the printer close to the

edge of your desk or table.

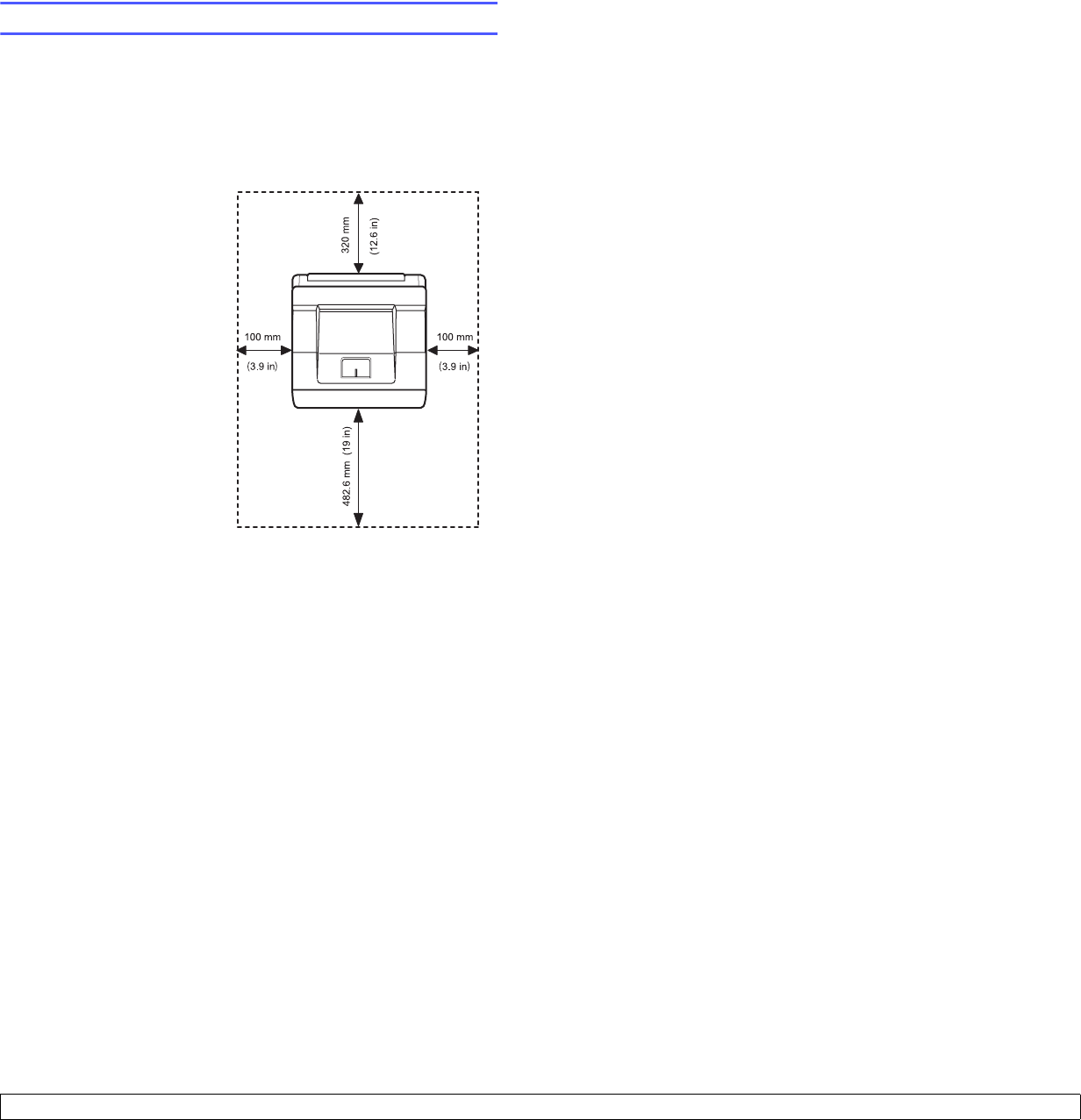

Clearance space

Front: 482.6 mm (enough

space so that trays can be

opened or removed)

Back: 320 mm (enough space

to allow opening of the rear

cover or the duplex unit)

Right: 100 mm (enough space

to allow opening of the control

board cover)

Left: 100 mm (enough space

for ventilation)
