Staple jam removal

If staples become jammed in the stapler, “CHECK STAPLER POSITION

OR STAPLE JAM.” will be displayed. Remove the jammed staples in the

manner described below.

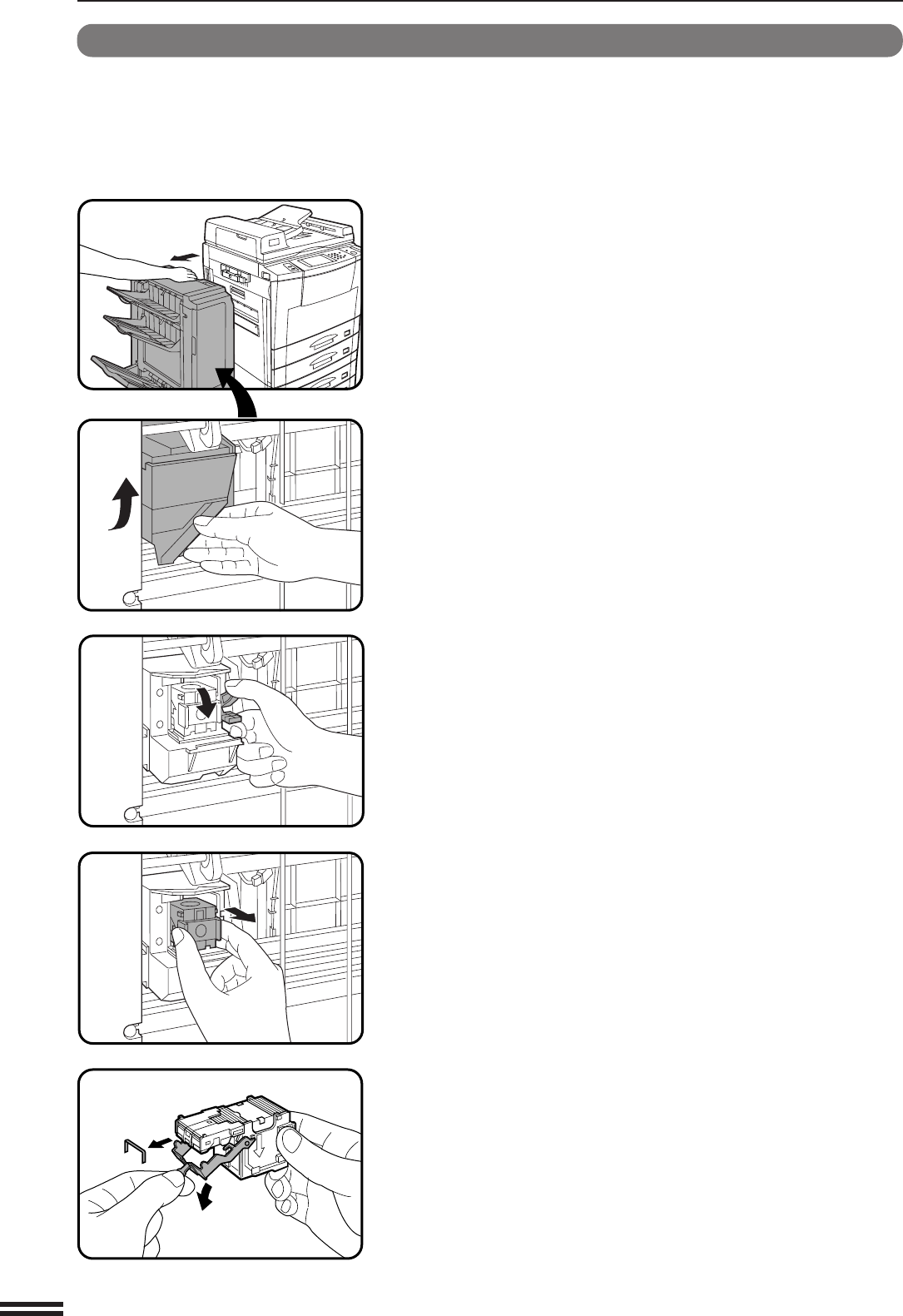

While holding the finisher release lever, slide the finisher

away from the copier.

Turn the stapler unit to face up.

Hold the staple box release lever to unlatch the staple

box.

Remove the staple box.

Lower the lever at the end of the staple box and remove

the jammed staples.

OPTIONAL EQUIPMENT

Finisher (AR-FN1N)

FINISHER (AR-FN1N)
