Scanning From the Operation Panel
125
7. Scanning

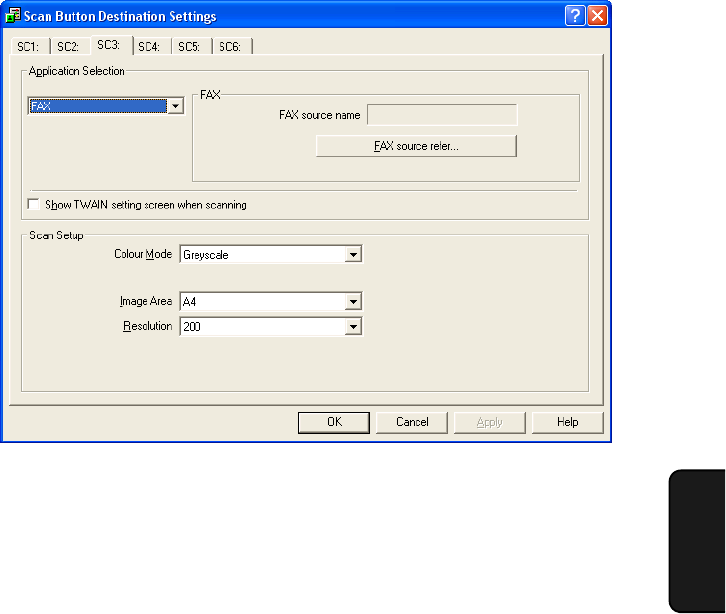

• If you wish to have the TWAIN driver open on your computer during
scanning from the operation panel to allow you to select scan settings,
select Show TWAIN setting screen when scanning.
• In the Scan Setup field, select the Colour Mode, Image Area, and
Resolution.
• When FAX is selected as the application
To select the fax driver that is used to send the scanned image as a fax,
click FAX source refer in the FAX field. Select the desired fax driver in the
FAX Source window and click OK. The selected driver will appear in FAX
source name.
