AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 3

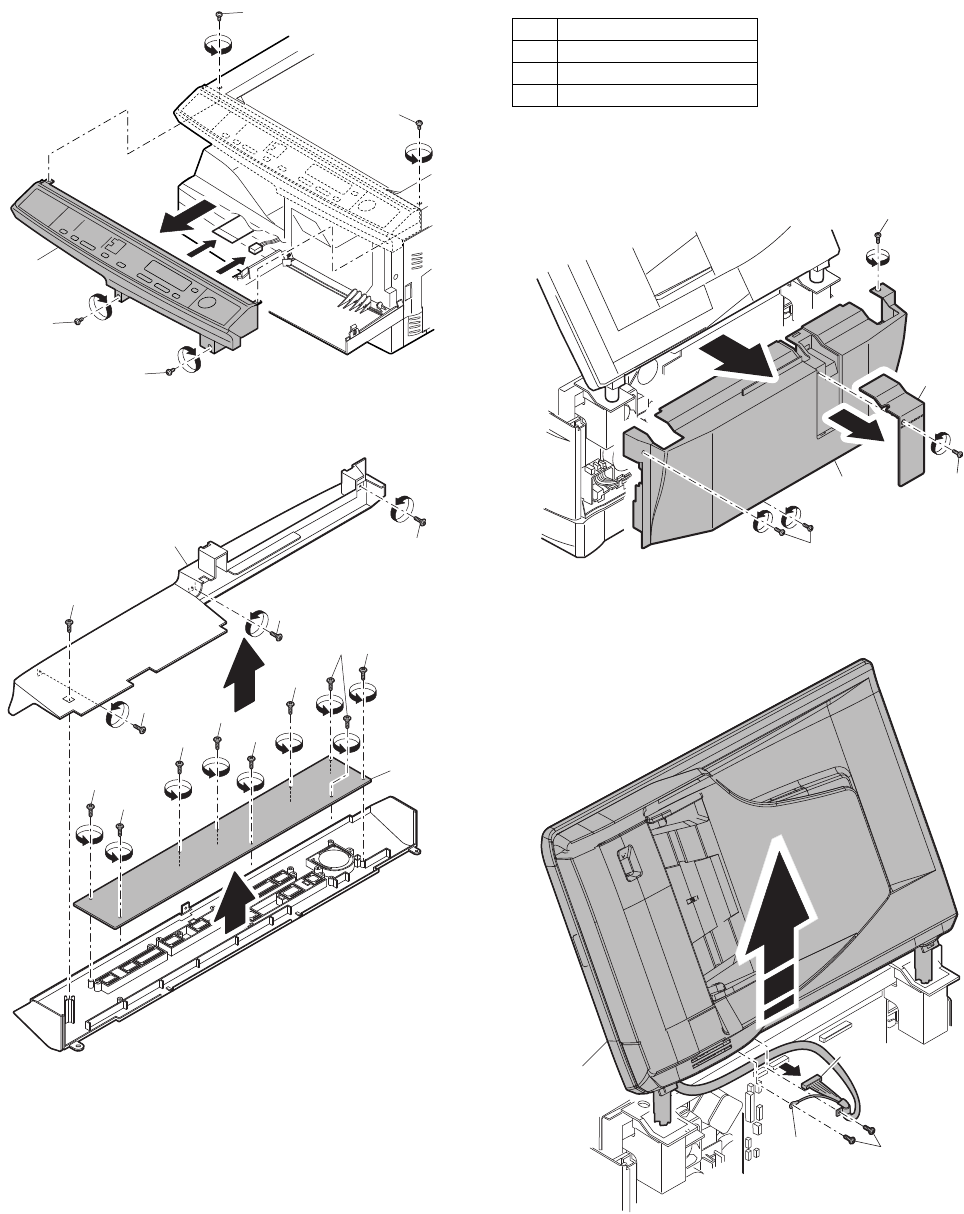

2) Remove the screws (4 pcs.), the harness, and the operation

panel unit.

3) Remove four screws, and remove the operation cabinet.

4) Remove nine screws, and remove the operation PWB.

C. Assembly procedure

For assembly, reverse the disassembly procedure

3. Optical section

A. List

B. Disassembly procedure

1) Remove four screws, and remove the rear cabinet and the rear

cabinet cover.

2) Remove two screws, and remove the earth wire.

3) Disconnect the connector.

4) Remove the SPF unit.

NO. Part name Ref.

1 Copy lamp unit

2Copy lamp

3 Lens unit

1 2 ... 39 40 41 42 43 44 45 46 47 48 49 ... 119 120
