Installation
17
1. Installation

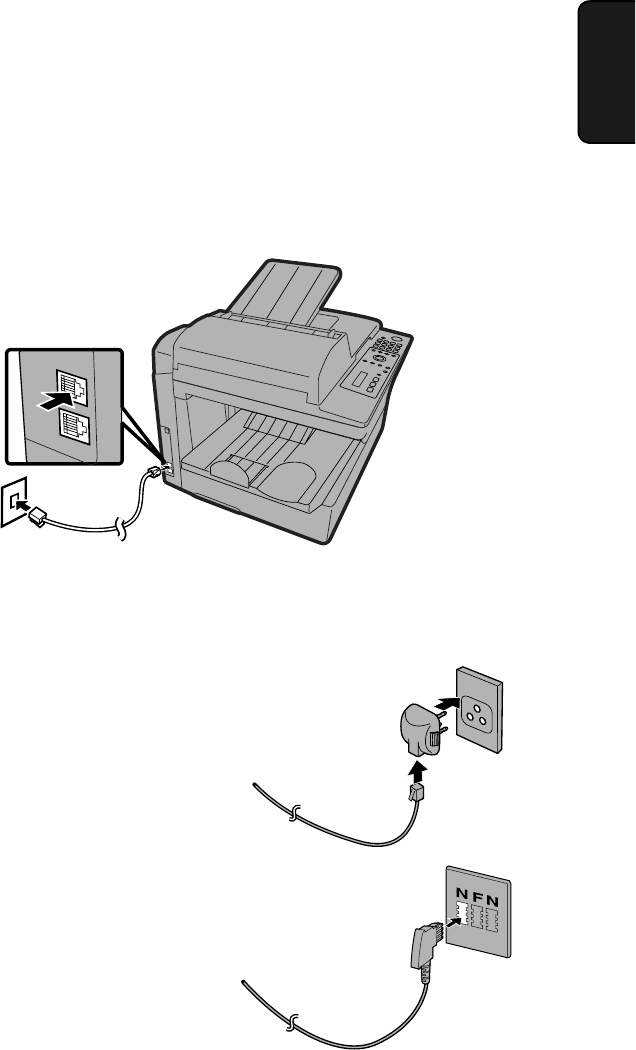

Connecting the telephone line cord (AM-400 only)
Insert one end of the line cord into the socket on the back of the machine
marked TEL. LINE. Insert the other end into a wall telephone socket.
Note: The shape of the line cord plug varies by country.
TEL.
LINE
TEL.
SET
Make sure that the line cord is
inserted into the TEL LINE socket.
Do not insert it into the TEL. SET
socket!
Germany:
The machine is supplied with a N-
coded line cable, enabling you to use
an extension (cordless) telephone on
the same line. If you don't have the
standard NFN-outlet of TELEKOM, you
can purchase an NFN-adapter at your
retailer.
Italy:
Use the provided adapter to connect the
line cord to the wall socket.
